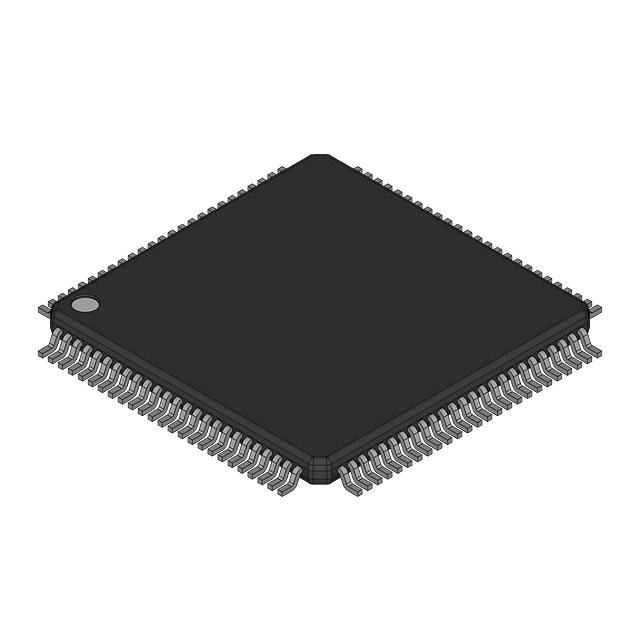

CY7C1460AV33-200AXCKG

Memory IC Overview

The CY7C1460AV33-200AXCKG is a 36-Mbit (1M x 36) synchronous pipelined SRAM featuring NoBL™ architecture. It supports 200 MHz bus operations with zero wait states and operates on a 3.3V power supply. The device utilizes fully registered inputs and outputs for efficient data transfer. It includes byte write capability, clock enable functionality, and IEEE 1149.1 JTAG boundary scan support.

Memory IC Feature Summary

• Supports unlimited true back-to-back read/write operations without wait states
• Features advanced NoBL logic for consecutive data transfers on every clock cycle
• Pin-compatible and functionally equivalent to ZBT devices

Memory IC Applications

• Data communication systems requiring high throughput
• Remote communication equipment
• Military systems with strict interface compatibility needs

Memory IC Procurement Notes

Verify the specific suffix 'KG' against official Cypress or Infineon documentation, as standard datasheets typically list 'AXI' or 'AXC'. Confirm RoHS compliance status and package availability directly with the manufacturer or authorized distributors, as this specific variant may be a specialized or discontinued order code.

Memory IC Selection Notes

Select this component when system design requires pin compatibility with existing Zero Bus Latency (ZBT) implementations but necessitates the specific timing characteristics of the NoBL pipeline architecture. Ensure the 3.3V I/O voltage levels align with the host processor interface requirements.

Memory IC Part Context

This part belongs to the CY7C1460AV33 family of 36-Mbit Synchronous Pipelined Burst SRAMs. The series is designed to dramatically improve data throughput in systems requiring frequent write/read transitions by eliminating bus latency during consecutive operations.

Memory IC Replacement Considerations

The CY7C1460AV33 is functionally equivalent to ZBT devices. Verify if other speed grades within the same package, such as the CY7C1460AV33-250AXI, meet the timing requirements.
