- Description：CY8C24223A - PSOC PROGRAMMABLE S
- Series：*
- Mfr：Cypress Semiconductor Corp
- Package：Bulk
- Core Processor：-
- Core Size：-
- Speed：-
- Connectivity：-
- Peripherals：-
- Number of I/O：-
- Program Memory Size：-
- Program Memory Type：-
- EEPROM Size：-
- RAM Size：-
- Voltage - Supply (Vcc/Vdd)：-
- Data Converters：-
- Oscillator Type：-
- Operating Temperature：-
- Mounting Type：-
- Supplier Device Package：-
- Package / Case：-
- Grade：-
- Qualification：-
Download product information
Overview

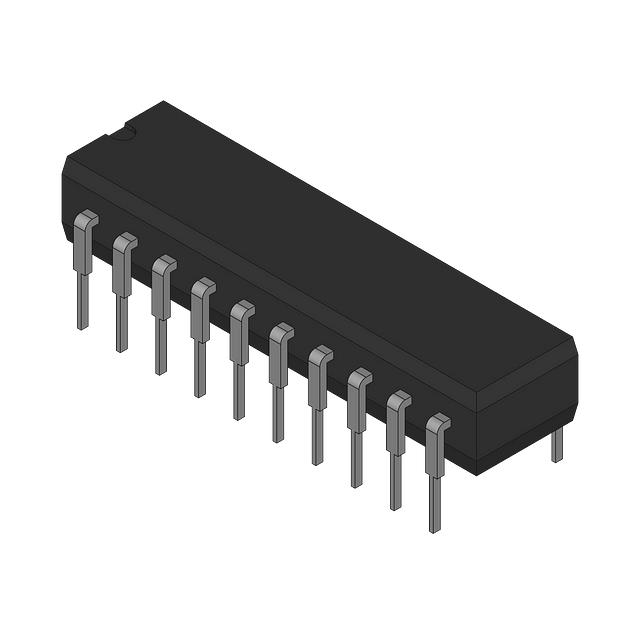

The CY8C24223A-5-24PXI is a PSoC Mixed Signal Array microcontroller from Cypress Semiconductor. It integrates an M8C CPU core with configurable analog and digital peripherals on a single chip. The device supports operation at 3V and 3.6V supply voltages in addition to standard levels. It features I2C and USB bus compatibility for communication interfaces. The maximum clock frequency reaches 24.6 MHz, enabling efficient processing for embedded applications requiring mixed-signal capabilities.
Feature Summary
- Integrates M8C processor with programmable analog and digital blocks
- Supports I2C and USB interface protocols
- Operates at multiple voltage levels including 3V and 3.6V
Applications
- Embedded control systems
- USB peripheral interfaces
- Capacitive sensing applications
- LCD and LED drivers
Procurement Notes
Verify the exact suffix against official Cypress documentation to confirm package type and temperature range. Ensure the ordering code matches the required SSOP or QFN variant. Cross-reference the datasheet revision date to confirm pinout and electrical specifications align with your design requirements before procurement.
Selection Notes
Select this component when a mixed-signal solution with USB connectivity is required. It is suitable for designs needing flexible analog-digital integration without external components. Consider the 24.6 MHz performance limit and available GPIO count relative to system complexity. Verify power supply constraints match the supported voltage ranges.
Part Context
This part belongs to the PSoC 2 family of programmable system-on-chips. These devices are designed to reduce board space and component count by integrating configurable peripherals. The family is widely used in industrial and consumer electronics where flexibility and low power consumption are critical design factors.
Replacement Considerations
Check for CY8C24223 variants with different suffixes for package changes. Verify if newer PSoC 2 revisions offer improved performance or additional features while maintaining pin compatibility.
