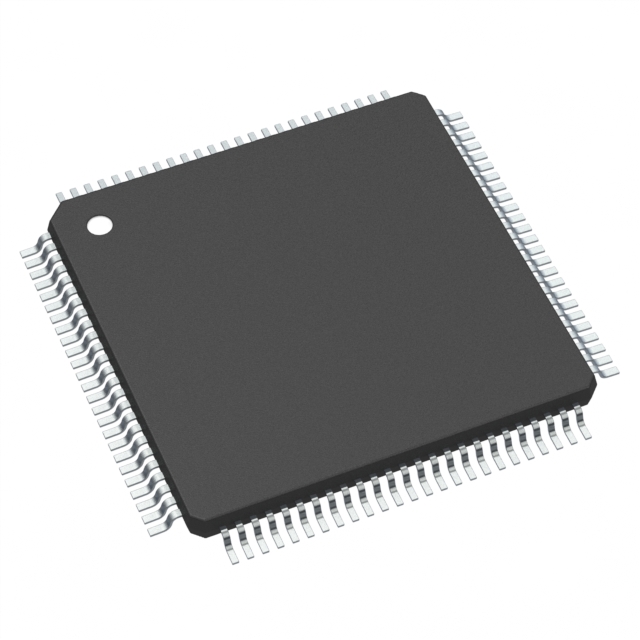

CY9AF112NPMC-GNE1 is listed in the Microcontrollers range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is IC MCU 32BIT 128KB FLASH 100LQFP. Review the specifications below when checking this part for your BOM.
Microcontrollers specifications for CY9AF112NPMC-GNE1
- Description：IC MCU 32BIT 128KB FLASH 100LQFP
- Series：FM3 MB9A110
- Mfr：Infineon Technologies
- Package：Tray
- Core Processor：ARM® Cortex®-M3
- Core Size：32-Bit Single-Core
- Speed：40MHz
- Connectivity：CSIO, EBI/EMI, I2C, LINbus, SPI, UART/USART
- Peripherals：DMA, LVD, POR, PWM, WDT
- Number of I/O：83
- Program Memory Size：128KB (128K x 8)
- Program Memory Type：FLASH
- EEPROM Size：-
- RAM Size：16K x 8
- Voltage - Supply (Vcc/Vdd)：2.7V ~ 5.5V
- Data Converters：A/D 16x12b SAR
- Oscillator Type：External, Internal
- Operating Temperature：-40°C ~ 105°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：100-LQFP (14x14)
- Package / Case：100-LQFP
Microcontrollers datasheet and documents for CY9AF112NPMC-GNE1
Microcontrollers Overview
The CY9AF112NPMC-GNE1 is a 32-bit ARM Cortex-M3 microcontroller from Infineon Technologies, part of the FM3 MB9A110 series. It integrates 128KB Flash memory and operates within a voltage range of 2.7V to 5.5V. The device supports a maximum clock frequency of 40MHz and features an LQFP-48 package with 36 I/O lines. It includes an 8-channel 12-bit ADC and interfaces such as CSIO, I2C, LIN, and UART. Operating temperatures span from -40°C to +105°C.
Microcontrollers Feature Summary
- Integrates 128KB Flash memory for program storage
- Supports automotive communication protocols including LINbus
- Features integrated 12-bit analog-to-digital conversion capabilities
Microcontrollers Applications
- Automotive body control modules
- LIN bus node implementations
- General-purpose industrial control systems
Microcontrollers Procurement Notes
Verify the specific suffix GNE1 against official Infineon documentation to confirm pinout and temperature grade compatibility. Ensure the LQFP-48 package dimensions match the target PCB footprint. Confirm RoHS compliance status through current manufacturer declarations before finalizing procurement orders.
Microcontrollers Selection Notes
Select this component when a 40MHz Cortex-M3 core with integrated LIN interface is required. The 128KB Flash size suits applications needing moderate code capacity. Verify that the 36 available I/O pins meet system connectivity requirements and that the operating temperature range aligns with environmental conditions.
Microcontrollers Part Context
This microcontroller belongs to the FM3 family, designed for robust embedded applications. The MB9A110 series variant provides a balance of processing power and peripheral integration suitable for cost-sensitive automotive and industrial environments. It utilizes standard ARM architecture for software ecosystem compatibility.
Microcontrollers Replacement Considerations
Check for updated suffixes in the MB9A110 series for potential pin-compatible upgrades. Consult Infineon's lifecycle notices to ensure long-term availability for production runs.
