CY9BF168RPMC-G-MNE2

Microcontrollers Overview

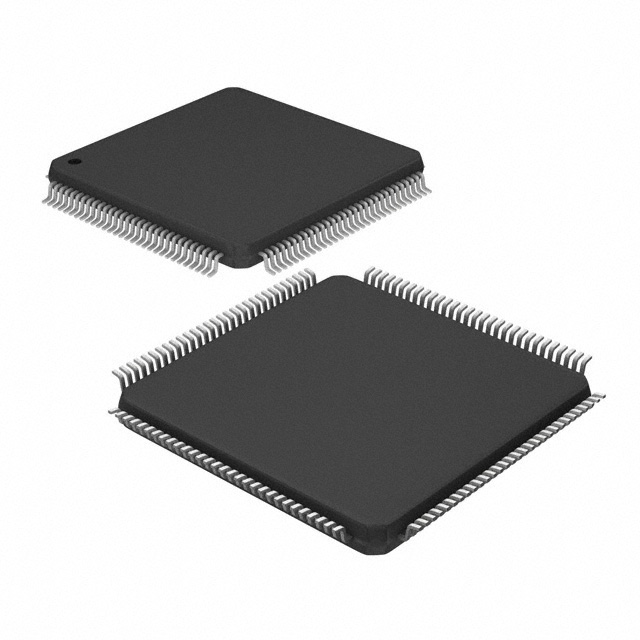

The Infineon CY9BF168RPMC-G-MNE2 is a 32-bit microcontroller from the FM4 MB9B160R series, built on an ARM Cortex-M4F core operating at up to 160 MHz. It features 1024 Kbytes of MainFlash memory and 128 Kbytes of SRAM. The device includes a 160MHz clock speed, 100-pin LQFP package, and supports a voltage range of 2.7V to 5.5V.

Microcontrollers Feature Summary

• Integrated ARM Cortex-M4F processor with FPU and DSP support
• High-performance motor control timers and quadrature position counters
• Flexible external bus interface supporting multiple memory types
• Comprehensive communication interfaces including UART, I2C, and LIN

Microcontrollers Applications

• Embedded controllers requiring high performance
• Motor control systems
• Industrial automation devices

Microcontrollers Procurement Notes

Verify the exact ordering suffix against official Infineon documentation to ensure correct package and temperature grade. Confirm RoHS compliance status and moisture sensitivity level prior to procurement. Cross-reference datasheet revision history for any functional updates.

Microcontrollers Selection Notes

Select this component for applications needing robust motor control capabilities alongside general-purpose processing. Evaluate pin count requirements against the 100-pin LQFP footprint. Ensure system voltage aligns with the specified 2.7V to 5.5V operating range.

Microcontrollers Part Context

This part belongs to the CY9B160R series within the FM4 family. It shares architectural similarities with other variants in the lineup, differing primarily in memory size and pin count configurations. The series targets cost-effective yet high-performance embedded solutions.

Microcontrollers Replacement Considerations

Consult official Infineon substitution guides for verified alternatives. Direct replacements must match the ARM Cortex-M4F architecture and compatible pinout specifications.
