CY9BF367MPMC1-G-JNE2

Microcontrollers Overview

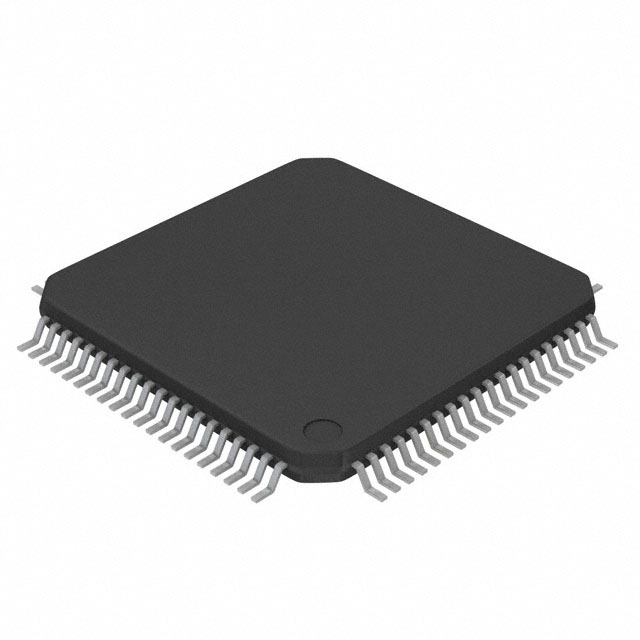

The CY9BF367MPMC1-G-JNE2 is a 32-bit microcontroller from Infineon's FM4 MB9B360R series, featuring an ARM Cortex-M4F core with FPU. It operates at a maximum clock frequency of 160 MHz and includes 768 kB of Flash program memory and 96 kB of SRAM data RAM. The device provides 63 I/O pins in an LQFP-80 package. Key peripherals include 16-channel 12-bit ADCs, 12-bit DACs, and interfaces such as CSIO, I2C, LIN, UART, and USB. It supports a supply voltage range of 2.7 V to 5.5 V and functions within a temperature range of -40°C to +105°C.

Microcontrollers Feature Summary

• Integrates an ARM Cortex-M4F processor core for high-performance digital signal processing capabilities.
• Includes extensive analog conversion resources with multiple 12-bit ADC channels and DAC outputs.
• Supports diverse communication protocols including LIN, USB, and standard serial interfaces.

Microcontrollers Applications

• Automotive body control modules
• Industrial motor control systems
• LIN bus network nodes

Microcontrollers Procurement Notes

Verify the specific suffix G-JNE2 against official Infineon documentation to confirm pinout and package details. Ensure compatibility with existing PCB footprints for the LQFP-80 form factor. Check current product status as legacy parts may have limited availability or end-of-life notices. Confirm moisture sensitivity level requirements for assembly processes.

Microcontrollers Selection Notes

Select this component when a robust automotive-grade MCU with LIN support is required. The combination of 768 kB Flash and 96 kB RAM suits complex application logic. The 160 MHz speed and FPU enable efficient real-time control algorithms. Consider the 63 I/O count for peripheral integration needs.

Microcontrollers Part Context

This part belongs to the FM4 family, designed for automotive and industrial applications. It succeeds the MB9BF series with enhanced performance and security features. The MB9B360R series variant offers a balance of processing power and connectivity for cost-sensitive embedded systems.

Microcontrollers Replacement Considerations

Check for direct pin-to-pin replacements within the same FM4 family, such as CY9BF367NPQC-G-JNE2 for different packaging. Verify software compatibility if migrating between variants with differing peripheral counts.
