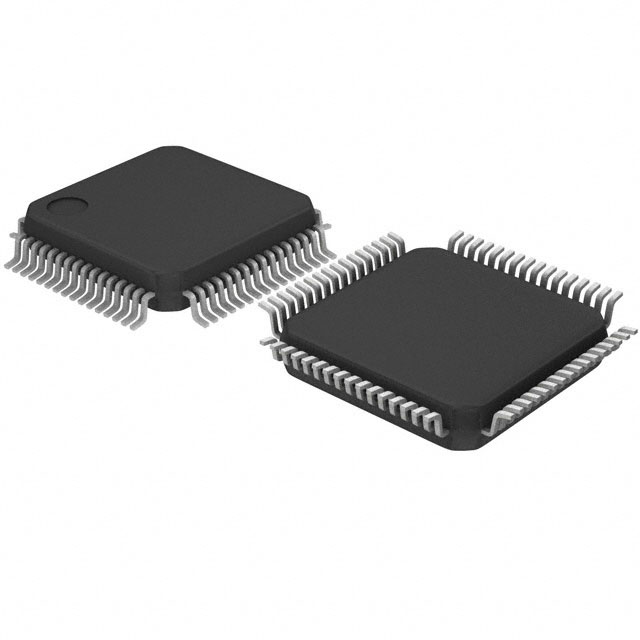

CYT2BL3BAAQ0AZSGST

Microcontrollers Overview

The CYT2BL3BAAQ0AZSGST is a 32-bit microcontroller from Infineon's TRAVEO™ T2G Body Entry Level series. It integrates dual-core ARM Cortex-M4F and Cortex-M0+ processors operating at frequencies up to 160 MHz. The device features 4 MB of main flash memory, 512 KB of SRAM, and 128 KB of work flash. It supports ASIL-B functional safety standards and includes extensive connectivity options such as CAN-FD, LIN, and multiple SCB modules.

Microcontrollers Feature Summary

• Dual-core architecture combining high-performance processing with secure management capabilities
• Integrated hardware security engines including eSHE and HSM for data protection
• Comprehensive automotive communication interfaces supporting body control applications
• Functional safety compliance aligned with ISO 26262 ASIL-B requirements

Microcontrollers Applications

• Body Control Modules (BCM)
• Door Control Units
• Lighting Control Systems

Microcontrollers Procurement Notes

Verify the specific suffix codes against official Infineon documentation to ensure correct package type, temperature range, and mass production status. Confirm that the selected variant matches the required pinout and memory configuration for the target design. Cross-reference the ordering part number with the latest datasheet errata to avoid integration issues related to known silicon revisions or packaging changes.

Microcontrollers Selection Notes

Select this component when designing automotive body electronics requiring robust functional safety certification alongside moderate processing power. The dual-core setup allows separation of safety-critical tasks from standard application logic. Ensure the design utilizes the available DMA channels and peripheral counts efficiently. Consider the thermal performance within the specified operating range during PCB layout planning.

Microcontrollers Part Context

This microcontroller belongs to the TRAVEO™ T2G family, specifically optimized for cost-sensitive automotive body applications. It shares architectural similarities with higher-end cluster displays but focuses on reliability and safety rather than high-speed graphics processing. The series provides a scalable platform for various body control functions while maintaining compatibility with Infineon's development tools and software bundles.

Microcontrollers Replacement Considerations

Direct substitutes within the same package and pinout include other CYT2BL variants with different memory sizes or peripheral configurations. Verify compatibility by comparing the specific suffix codes in the official replacement matrix. Upgrading to higher-performance cores may require software adaptation due to architectural differences.
