CYT3BBBCEBQ0BZEGS

Microcontrollers Overview

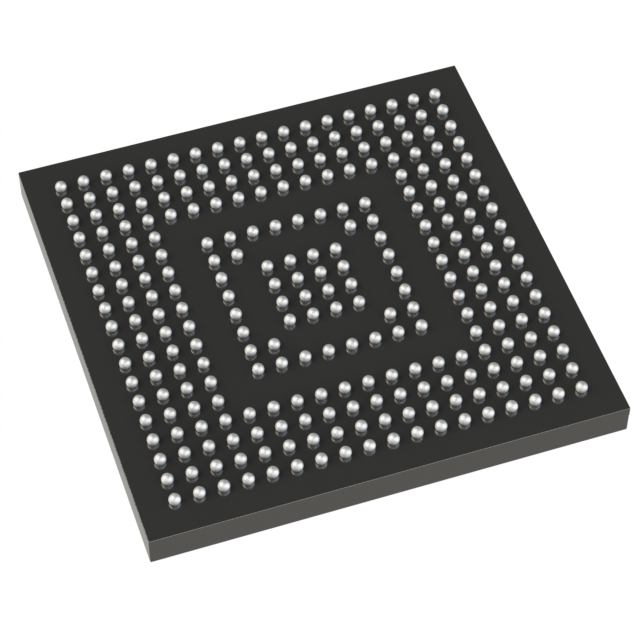

The CYT3BBBCEBQ0BZEGS is an ARM microcontroller from Infineon's TRAVEO T2G Body High-End series, designed for automotive body electronics. It features a dual-core architecture with an Arm Cortex-M7F and an Arm Cortex-M0+ processor. The device operates at a maximum clock frequency of 250 MHz and includes 4.06 MB of program memory. It provides 768 kB of data RAM and supports up to 220 I/O pins in a BGA-272 package. Key peripherals include three 12-bit ADCs, multiple communication interfaces such as CAN FD and LIN, and compliance with AEC-Q100 standards for operation between -40°C and +125°C.

Microcontrollers Feature Summary

• Dual-core processing capability combining high-performance Cortex-M7F with low-power Cortex-M0+ cores
• Integrated hardware security modules including eSHE and HSM for secure boot and encryption
• Comprehensive connectivity suite supporting CAN FD, LIN, and Ethernet for robust vehicle networking
• Automotive-grade reliability with ASIL-B support and extended temperature range operation

Microcontrollers Applications

• Body Control Modules (BCM)
• HVAC system controllers
• Advanced lighting control units

Microcontrollers Procurement Notes

Verify the specific ordering suffix against the official Infineon datasheet to ensure correct package type, temperature grade, and mass storage configuration. Confirm that the component meets the required AEC-Q100 qualification level for your specific automotive application environment. Cross-reference the part number with the latest product change notifications to ensure availability and manufacturing status alignment.

Microcontrollers Selection Notes

Select this component when designing systems requiring high computational throughput alongside strict functional safety requirements. The dual-core architecture allows for separation of real-time control tasks from complex user interface or networking functions. Ensure the design utilizes the available GPIO count and peripheral sets efficiently to maximize the benefits of the 272-pin BGA form factor within the target enclosure constraints.

Microcontrollers Part Context

This part belongs to the TRAVEO T2G CYT3BB family, which targets the demanding requirements of modern automotive body electronics. The series emphasizes secure connectivity and high performance within a single chip solution. It serves as a central processing unit for integrating various vehicle subsystems, replacing multiple discrete controllers to reduce complexity and weight in vehicle architectures.

Microcontrollers Replacement Considerations

Direct substitutes within the same package and pinout may include other variants from the CYT3BB series, such as CYT3BBBCEBQ1BZEGS, provided the software and hardware configurations are compatible. Verify that any replacement maintains the same core frequency, memory size, and security feature set to ensure seamless integration without redesign.
