CZ5364B TR PBFREE

Single Zener Diodes Overview

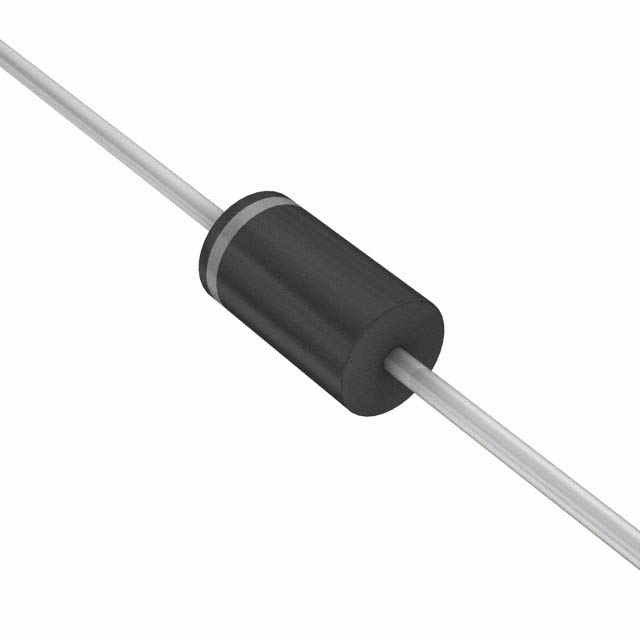

The CZ5364B TR PBFREE is a silicon Zener diode from the Central Semiconductor CZ5334B series, designed for voltage regulation in industrial and commercial applications. It features a nominal Zener voltage of 33 V with a ±5% tolerance (range 31.35 V to 34.65 V) at a test current of 40 mA. The device operates in a DO-201 axial leaded package with a maximum power dissipation of 5 W at 75°C. Key electrical characteristics include a maximum reverse leakage current of 150 µA at 25.1 V, a maximum Zener impedance of 10 Ω, and a maximum forward voltage of 1.2 V at 1 A. It supports an operating junction temperature range of -65°C to +200°C.

Single Zener Diodes Feature Summary

• High-quality silicon construction for reliable voltage regulation
• DO-201 axial leaded package suitable for through-hole mounting
• Wide operating junction temperature range up to +200°C
• Lead-free plating compliant with RoHS standards

Single Zener Diodes Applications

• Industrial equipment voltage regulation
• Commercial electronic circuit protection
• Entertainment system power management
• Computer application voltage reference

Single Zener Diodes Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm compliance requirements. Confirm that the 'TR' designation indicates tape and reel packaging and ensure compatibility with automated assembly processes. Validate that the component meets all necessary environmental certifications required for the target deployment region before finalizing procurement orders.

Single Zener Diodes Selection Notes

Select this component when a 33 V regulated voltage is required within a ±5% tolerance band. Ensure the circuit design accommodates the 5 W power dissipation capability and the thermal derating requirements above 75°C. Verify that the DO-201 package dimensions fit the printed circuit board layout constraints and that the axial leads align with the mounting holes.

Single Zener Diodes Part Context

This part belongs to the CZ5334B series of silicon Zener diodes manufactured by Central Semiconductor Corp. The series covers a voltage range from 3.3 V to 200 V, offering standardized performance for various voltage regulation needs. The 'B' suffix specifically denotes the ±5% voltage tolerance variant within this product family.

Single Zener Diodes Replacement Considerations

No public confirmed substitute part numbers are available for this component.
