CZB1JGTTD102P

Overview

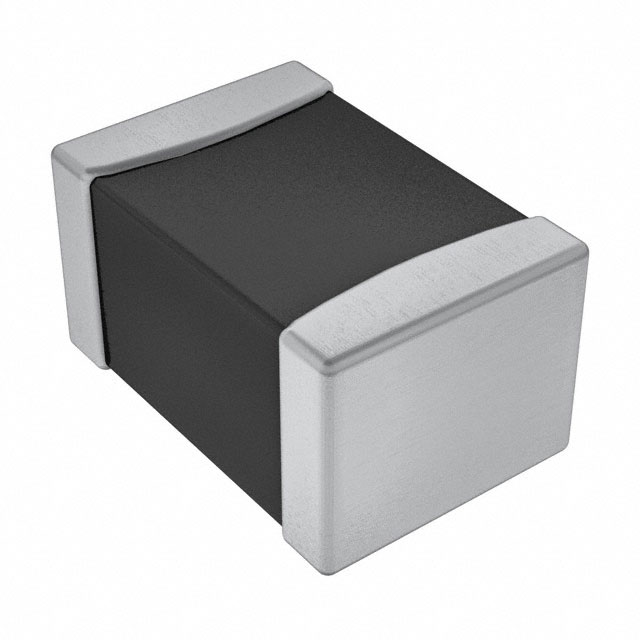

The CZB1JGTTD102P is a multilayer ferrite chip bead manufactured by KOA Speer Electronics, Inc. It features a 0603 (1608 metric) surface-mount package with dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height. The component provides an impedance of 1 kOhms at a test frequency of 100 MHz with a tolerance of 25%. It supports a maximum DC current of 250 mA and has a maximum DC resistance of 600 mOhms. The operating temperature range spans from -55°C to +125°C.

Feature Summary

• Multilayer construction for compact high-frequency noise suppression
• Designed for low-speed signal line filtering applications
• Surface-mount termination compatible with automated assembly

Applications

• Low-speed signal line noise suppression
• High-frequency interference filtering in electronic circuits
• Signal integrity protection in compact PCB designs

Procurement Notes

Verify the specific suffix 'D' against official KOA documentation to confirm tape-and-reel packaging configuration. Ensure the selected variant matches the required 0603 footprint and electrical characteristics for the target circuit design. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and authenticity before procurement.

Selection Notes

Select this component when a 1 kOhm impedance at 100 MHz is required within a 0603 footprint. Consider the 250 mA current rating and 600 mOhm DCR limits for power handling requirements. Evaluate the -55°C to +125°C temperature range against environmental conditions. Compare against other CZB series variants if different impedance or current ratings are needed.

Part Context

This ferrite bead belongs to the CZB series of multilayer components designed for EMI suppression. It utilizes ceramic ferrite materials integrated into a thin-film structure to provide effective high-frequency attenuation. The series offers various impedance values and current ratings across multiple standard package sizes to support diverse electronic design needs.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult KOA Speer technical resources for equivalent alternatives.
