CZP2AFTTD102P

Overview

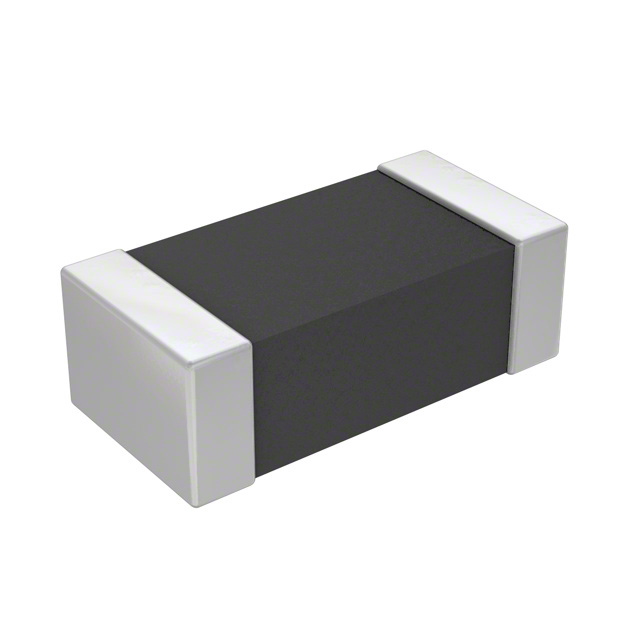

The CZP2AFTTD102P is a multilayer power ferrite bead manufactured by KOA Speer Electronics, Inc. It features an 0805 (2012 metric) surface-mount package with dimensions of 2.0 mm length, 1.25 mm width, and 0.9 mm height. The component provides an impedance of 1 kOhms at a test frequency of 100 MHz and has a maximum DC resistance of 200 mOhms. It supports a current rating of 1 A and operates within a temperature range of -55°C to +125°C.

Feature Summary

• Multilayer construction for high-power applications
• Anti-surge capability for robust performance
• Surface-mount design for automated assembly

Applications

• Power line filtering in electronic circuits
• Electromagnetic interference suppression
• High-current signal path protection

Procurement Notes

Verify the specific suffix 'TTD' against official KOA documentation to confirm tape-and-reel packaging specifications. Ensure the selected variant matches the required 1 kOhm impedance tolerance and 1 A current rating for your circuit design. Cross-reference the RoHS compliance status with the latest manufacturer datasheet before finalizing procurement orders.

Selection Notes

Select this component when designing circuits requiring significant current handling alongside high-frequency noise attenuation. The 0805 footprint offers a balance between power dissipation capacity and board space efficiency. Consider the 200 mOhm DC resistance impact on voltage drop when sizing power traces and evaluating thermal management requirements for the application environment.

Part Context

This part belongs to the CZP series of multilayer ferrite beads from KOA Speer. These components are engineered for power line applications where high current ratings and low DC resistance are critical. The series utilizes advanced multilayer technology to achieve effective electromagnetic interference suppression in compact surface-mount packages suitable for modern electronics manufacturing.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
