CZP2BFTTE601P

Overview

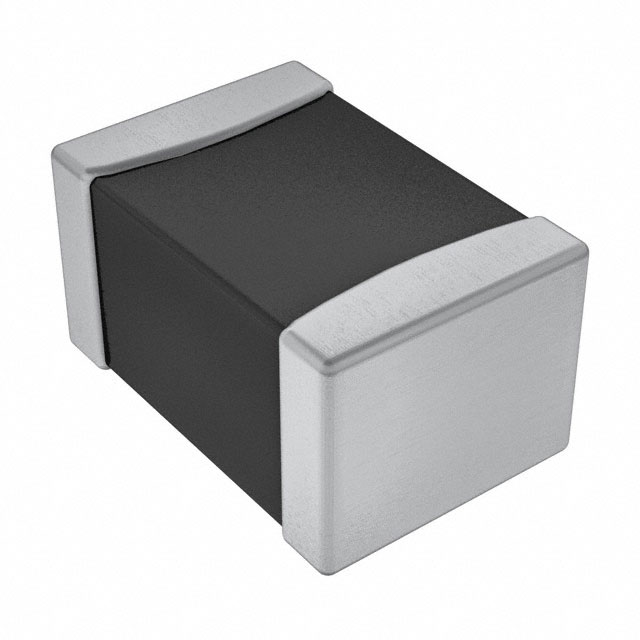

The CZP2BFTTE601P is a multilayer ferrite bead manufactured by KOA Speer Electronics, Inc., designed for power line signal filtering. It features a 1206 (3216 metric) surface mount package with dimensions of 3.2 mm length, 1.6 mm width, and 1.1 mm height. The component provides an impedance of 600 Ohms at a test frequency of 100 MHz with a tolerance of 25%. It supports a maximum DC current of 1 A and has a maximum DC resistance of 200 mOhms. The operating temperature range spans from -55°C to +125°C.

Feature Summary

• Multilayer construction for compact surface mount integration
• Designed specifically for power line signal filtering applications
• High current handling capability suitable for power circuits

Applications

• Power line noise suppression
• Signal filtering in electronic circuits
• EMI suppression in high-current paths

Procurement Notes

Verify the specific ordering suffix and packaging configuration required for your production needs. Confirm that the 1206 package dimensions align with your PCB footprint design. Ensure the 1 A current rating meets the operational requirements of your target circuit. Check for RoHS compliance status if mandated by your project specifications. Validate the impedance value at 100 MHz against your EMI filtering targets.

Selection Notes

Select this component when a 600 Ohm impedance at 100 MHz is required for power line filtering. The 1 A maximum DC current rating makes it suitable for higher current applications compared to standard signal beads. The 1206 package offers a balance between size and current capacity. Consider the 200 mOhms DC resistance impact on voltage drop in low-voltage circuits. The wide temperature range ensures reliability in varied environmental conditions.

Part Context

This part belongs to the CZP series of multilayer ferrite beads from KOA Speer. These components are engineered for effective electromagnetic interference suppression in modern electronic devices. The series utilizes advanced ceramic materials to provide stable performance across a broad frequency spectrum. The 1206 form factor allows for automated assembly in high-volume manufacturing environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative ferrite beads based on impedance, current rating, and package dimensions before substitution.
