CZRL5236B-G

Single Zener Diodes Overview

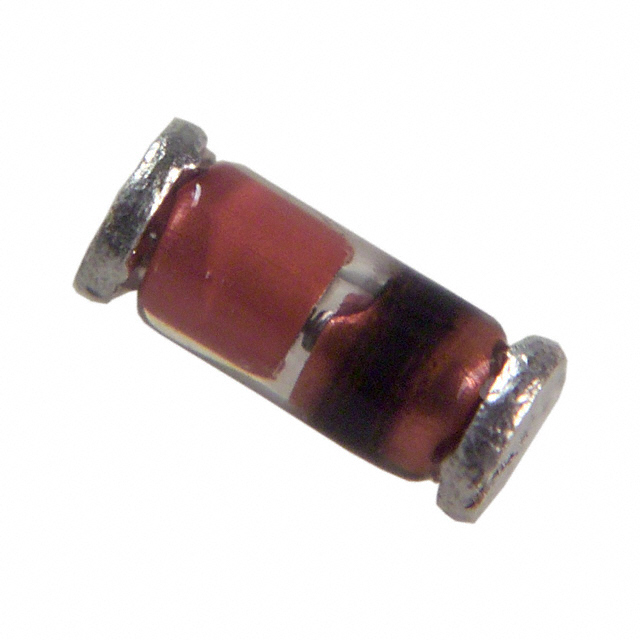

The CZRL5236B-G is a single Zener diode manufactured by Comchip Technology, designed for surface-mount applications in the SOD-80-2 package. It features a nominal Zener voltage of 6.8 V with a power dissipation rating of 500 mW. The device exhibits a maximum reverse leakage current of 3 µA and a Zener impedance of 5 Ohms at a test current of 20 mA. It operates within a temperature range of -65 °C to +175 °C and maintains a voltage tolerance of 5%.

Single Zener Diodes Feature Summary

• Utilizes planar die construction for stable voltage regulation characteristics.
• Designed for automated assembly processes compatible with surface-mount technology.
• Halogen-free composition adhering to environmental standards.

Single Zener Diodes Applications

• Voltage reference circuits
• Over-voltage protection
• Clamping applications

Single Zener Diodes Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm RoHS compliance status and check for End-of-Life notices, as availability may be restricted. Ensure packaging specifications match production requirements before finalizing orders.

Single Zener Diodes Selection Notes

Select this component when a 6.8 V reference with 500 mW dissipation is required in an SOD-80-2 footprint. Consider the high operating temperature limit of 175 °C for thermal management. Verify that the 5 Ohm impedance meets circuit sensitivity requirements compared to lower-power alternatives.

Single Zener Diodes Part Context

This part belongs to the CZRL series of surface-mount Zener diodes from Comchip Technology. The series offers various voltage options within the SOD-80-2 package, providing a compact solution for space-constrained designs requiring reliable voltage regulation.

Single Zener Diodes Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
