D131AM-AMPS/PCS-S is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 860MHZ/1.9GHZ WHIP TILT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for D131AM-AMPS/PCS-S
- Description：RF ANT 860MHZ/1.9GHZ WHIP TILT
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：860MHz, 1.9GHz
- Frequency Range：824MHz ~ 896MHz, 1.85GHz ~ 1.99GHz
- Antenna Type：Whip, Tilt
- Number of Bands：2
- VSWR：2
- Return Loss：-
- Gain：0dB
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：4.252" (108.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for D131AM-AMPS/PCS-S
Antennas RF Overview

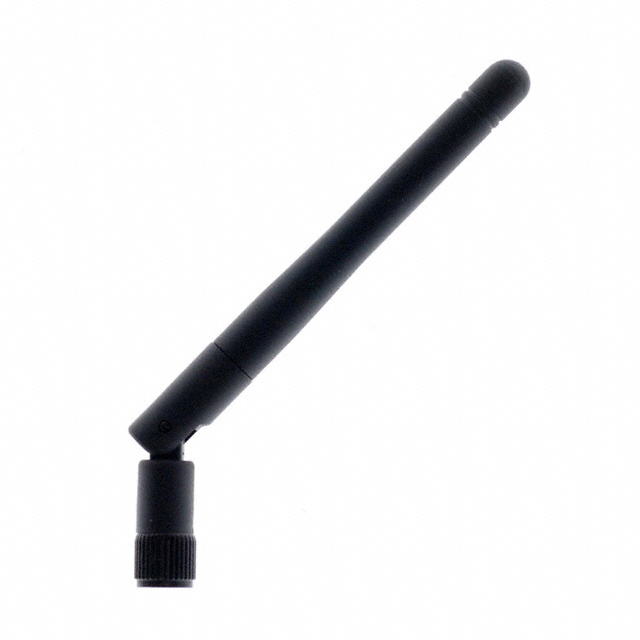

The D131AM-AMPS/PCS-S is a dual-band cellular whip antenna manufactured by Nearson Inc. Designed for AMPS and PCS frequency bands, this component features an SMA male connector mount interface. The unit has a maximum height of 4.252 inches (108.00mm) and weighs 0.20 lbs. It complies with RoHS3 standards and is supplied in bulk packaging. The antenna utilizes a hinged rubber duck design to facilitate flexible orientation while maintaining signal integrity across its specified operational range.
Antennas RF Feature Summary
- Dual-band operation supporting AMPS and PCS cellular frequencies
- Hinged rubber duck construction for adjustable positioning
- SMA male connector mount for secure attachment
Antennas RF Applications
- Cellular communication systems requiring dual-band support
- Mobile radio installations needing flexible antenna orientation
- Industrial telemetry equipment utilizing AMPS/PCS bands
Antennas RF Procurement Notes
Verify the specific datasheet version against the manufacturer's official documentation before procurement. Confirm that the SMA male connector mount aligns with the host device interface requirements. Ensure compliance with RoHS3 regulations if applicable to the target market. Check bulk packaging specifications to determine handling procedures upon receipt. Validate that the physical dimensions fit within the designated installation space constraints.
Antennas RF Selection Notes
Select this model when dual-band coverage for AMPS and PCS is required. The hinged design offers mechanical flexibility compared to rigid whip antennas. Verify that the SMA male interface matches existing system connectors. Consider the 4.252-inch height for clearance requirements during installation. This component is suitable for applications demanding reliable cellular connectivity with adjustable directional capabilities.
Antennas RF Part Context
This part belongs to the Nearson D131AM series of RF antennas. The series includes various configurations tailored for different cellular band requirements. The D131AM-AMPS/PCS-S specifically targets North American cellular standards. It shares the same base product number architecture as other variants in the family, differing primarily in frequency band support and connector type specifications.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with Nearson's current catalog for updated models. Verify compatibility with existing SMA male interfaces if considering alternative brands. Ensure any replacement maintains dual-band AMPS/PCS performance characteristics.
