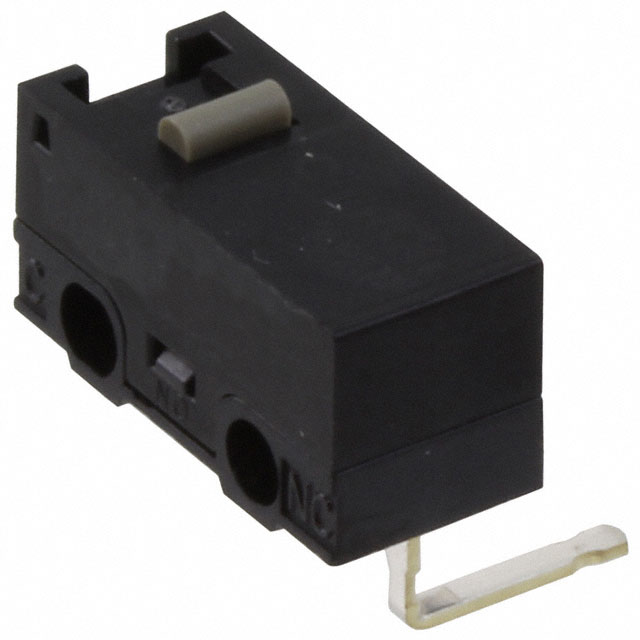

Limit Switches D2F-01F-A product image

D2F-01F-A

$2.21

Description：SWITCH SNAP ACTION SPDT 0.1A 30V
Series：D2F
Mfr：Omron Electronics Inc-EMC Div
Package：Tray

SKU:1f35541d9958 Category: Limit Switches Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

D2F-01F-A is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 0.1A 30V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D2F-01F-A

Description：SWITCH SNAP ACTION SPDT 0.1A 30V
Series：D2F
Mfr：Omron Electronics Inc-EMC Div
Package：Tray
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：100mA (DC)
Voltage Rating - AC：-
Actuator Type：Round (Pin Plunger)
Mounting Type：Through Hole, Right Angle
Termination Style：PC Pin
Ingress Protection：IP40
Features：Actuator Mounted Right Side
Operating Force：75gf
Release Force：5.099gf
Operating Position：0.217" (5.5mm)
Pretravel：0.020" (0.5mm)
Differential Travel：0.005" (0.13mm)
Overtravel：0.010" (0.25mm)
Operating Temperature：-40°C ~ 85°C
Voltage Rating - DC：30 V

Limit Switches datasheet and documents for D2F-01F-A

D2F-01F-A
