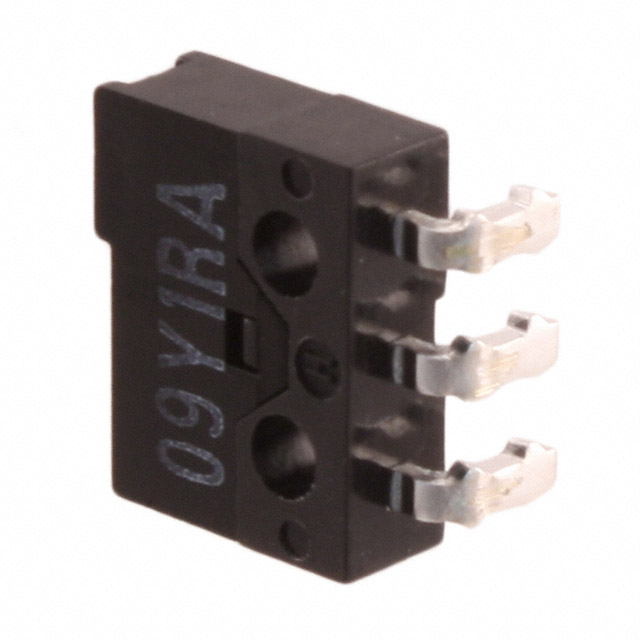

D2MQ-1-TL

D2MQ-1-TL is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 0.5A 30V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D2MQ-1-TL

• Description：SWITCH SNAP ACTION SPDT 0.5A 30V
• Series：D2MQ
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tray
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：500mA (DC)
• Voltage Rating - AC：-
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Through Hole, Right Angle
• Termination Style：PC Pin
• Ingress Protection：IP40
• Features：-
• Operating Force：120gf
• Release Force：21gf
• Operating Position：0.224" (5.7mm)
• Pretravel：0.015" (0.4mm)
• Differential Travel：0.004" (0.1mm)
• Overtravel：0.004" (0.1mm)
• Operating Temperature：-15°C ~ 70°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for D2MQ-1-TL
