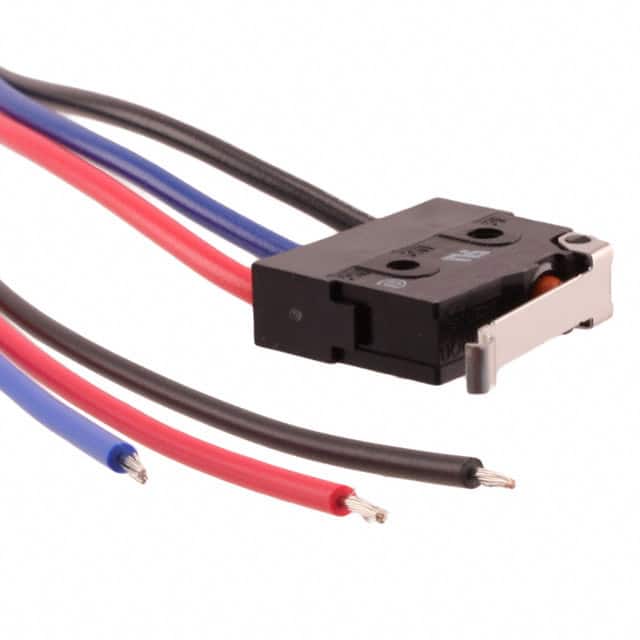

Limit Switches D2SW1020M product image

D2SW1020M

$5.17

Description：AUTO SWITCHES MINI BASIC SWITCH
Series：D2SW
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk

SKU:1d827e6e1c77 Category: Limit Switches Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

D2SW1020M is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is AUTO SWITCHES MINI BASIC SWITCH. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D2SW1020M

Description：AUTO SWITCHES MINI BASIC SWITCH
Series：D2SW
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：3A (AC/DC)
Voltage Rating - AC：125 V
Actuator Type：Lever, Simulated Roller
Mounting Type：Chassis Mount
Termination Style：Wire Leads
Ingress Protection：IP67 - Dust Tight, Waterproof
Features：-
Operating Force：60gf
Release Force：6.118gf
Operating Position：0.421" (10.70mm)
Pretravel：-
Differential Travel：0.031" (0.80mm)
Overtravel：0.039" (1.0mm)
Operating Temperature：-40°C ~ 85°C
Voltage Rating - DC：30 V
