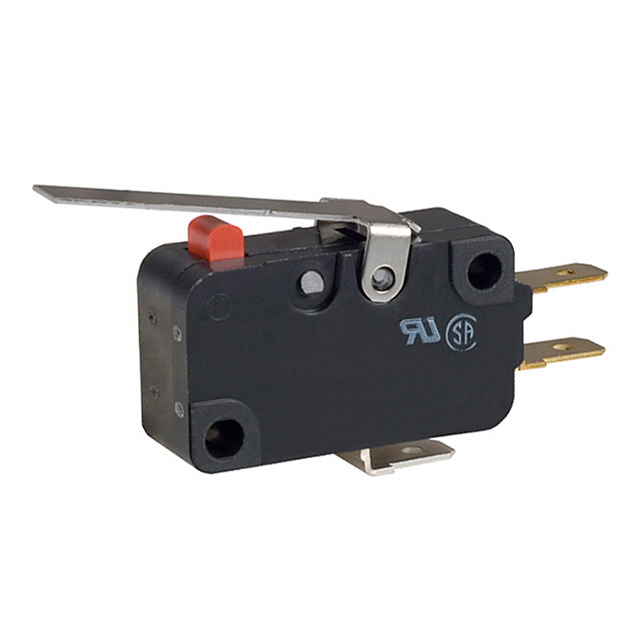

Limit Switches D3V-16G1-1C25-K product image

D3V-16G1-1C25-K

$1.86

Description：SWITCH SNAP ACTION SPDT 16A 250V
Series：D3V
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk,Box

SKU:2a602d62da33 Category: Limit Switches Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

D3V-16G1-1C25-K is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 16A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D3V-16G1-1C25-K

Description：SWITCH SNAP ACTION SPDT 16A 250V
Series：D3V
Mfr：Omron Electronics Inc-EMC Div
Package：Bulk,Box
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：16A (AC), 100mA (DC)
Voltage Rating - AC：250 V
Actuator Type：Lever, Straight
Mounting Type：Chassis Mount
Termination Style：Quick Connect - 0.187" (4.7mm)
Ingress Protection：IP40
Features：-
Operating Force：200gf
Release Force：50gf
Operating Position：0.600" (15.2mm)
Pretravel：0.063" (1.6mm)
Differential Travel：0.020" (0.5mm)
Overtravel：0.031" (0.79mm)
Operating Temperature：-25°C ~ 105°C
Voltage Rating - DC：125 V

Limit Switches datasheet and documents for D3V-16G1-1C25-K
