DA101MC-R

Overview

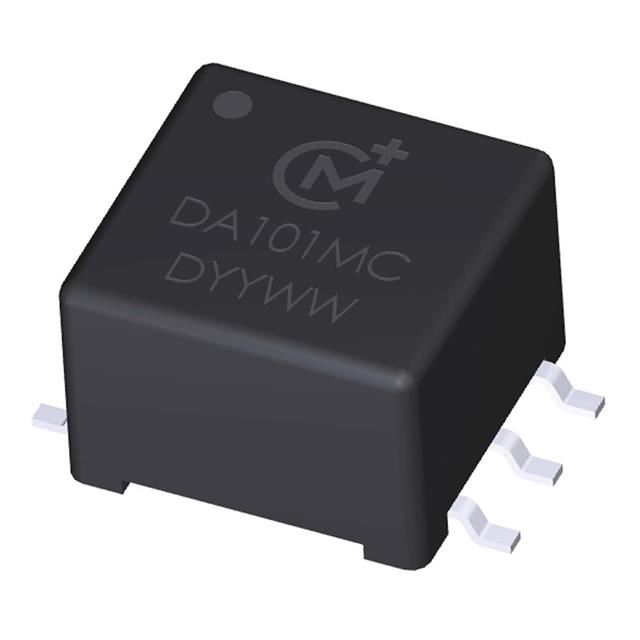

The DA101MC-R is a surface-mount pulse transformer from the DA100 series, designed for digital audio data transmission. It features a 1:1 turns ratio and an inductance range of 1 mH to 2.06 mH. The component operates within a temperature range of 0°C to +70°C and provides 2 kV isolation voltage. It utilizes a 6-pin SMD package measuring 9.52 mm in length and 9.52 mm in width, with a maximum height of 6.35 mm. Primary coil impedance is specified at 110 ohms, and it supports frequencies from 50 Hz to 60 Hz.

Feature Summary

• Engineered specifically for digital audio signal transmission applications
• Provides electrical isolation between circuit sections via high dielectric strength
• Optimized for surface-mount assembly processes in compact designs

Applications

• Digital audio interface circuits
• Signal transmission systems requiring galvanic isolation
• Audio equipment internal signal coupling

Procurement Notes

Verify current availability status as this part may be subject to limited supply or special order requirements. Confirm that the replacement DA101JC-R meets all functional specifications before integration. Ensure compliance with RoHS3 directives and check for any design-in restrictions noted by the manufacturer. Validate package dimensions against PCB footprint requirements prior to procurement.

Selection Notes

Select this component when a 1:1 ratio pulse transformer is required for low-frequency audio signals up to 60 Hz. Consider the 2.06 mH inductance value for impedance matching needs. The 6-pin SMD form factor suits space-constrained layouts. Verify thermal limits align with the operating environment constraints of the target application system.

Part Context

This device belongs to the DA100 series of transformers manufactured by Murata Power Solutions. It serves as a specialized component for handling digital audio data streams. The series focuses on providing reliable signal integrity in audio transmission paths while maintaining necessary electrical separation between connected stages.

Replacement Considerations

The DA101JC-R is documented as a suggested alternate part number by the manufacturer.
