DAC60516RUYR

Digital To Analog Converters Overview

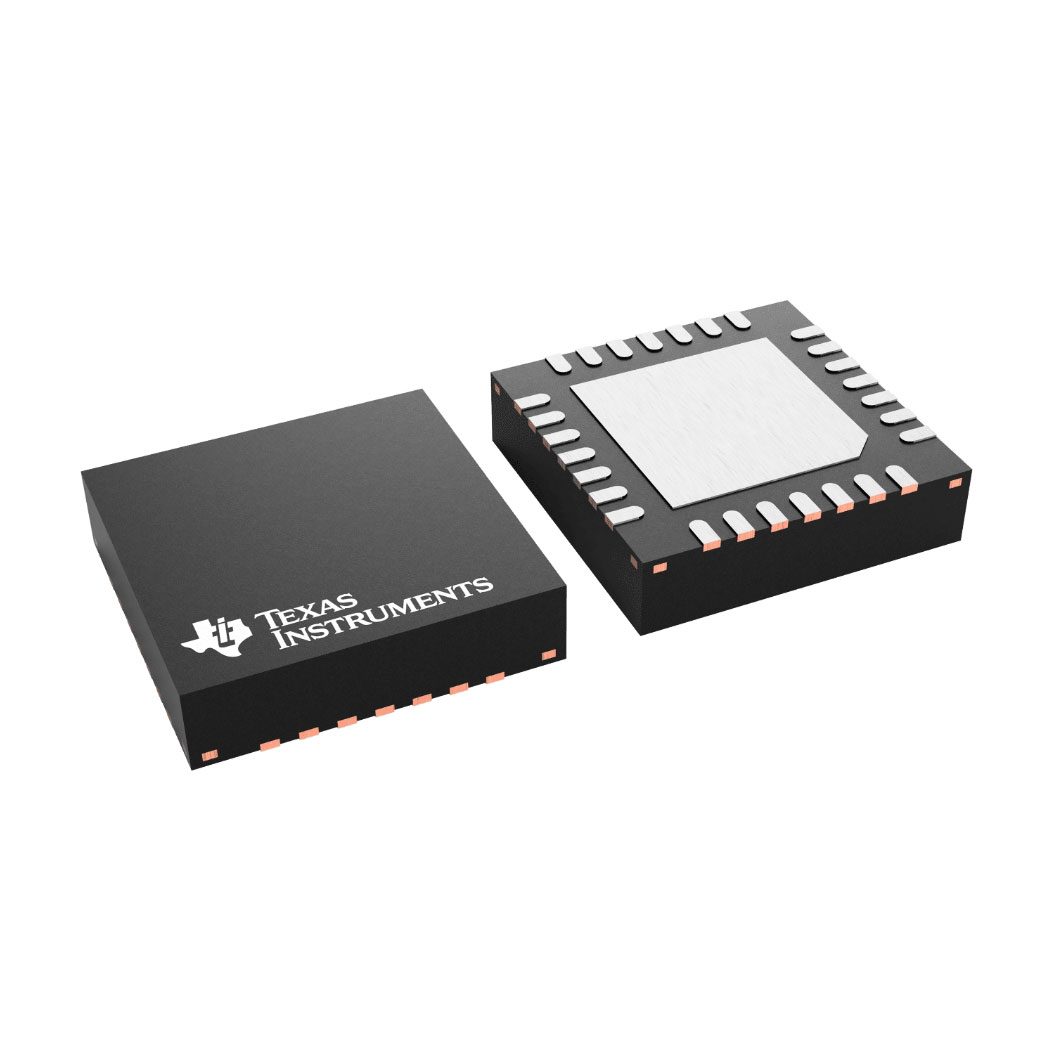

The DAC60516RUYR is a 12-bit, 16-channel buffered voltage-output digital-to-analog converter from Texas Instruments. It features an integrated 2.5V precision internal reference with ±2.5mV initial accuracy and 15ppm/°C drift. The device supports SPI and I2C interfaces operating at clock rates up to 50MHz for SPI writes, with VIO ranging from 1.7V to 5.5V. Key electrical parameters include a maximum INL of ±1LSB, TUE of ±0.15% FSR, and a settling time of 6µs. It operates on a single supply of 2.7V to 5.5V, offers user-selectable gain (1x or 2x), and provides high drive capability of 50mA. The component is housed in a 4mm × 4mm, 28-pin WQFN package.

Digital To Analog Converters Feature Summary

• Integrated 2.5V precision internal reference eliminates the need for external components in most applications.
• Flexible configuration options including user-selectable gain, reset to zero scale, and clear output functions.
• High drive capability allows sourcing and sinking up to 50mA with 0.5V headroom from supply rails.

Digital To Analog Converters Applications

• Optical modules
• Inter-DC interconnect
• Analog output module

Digital To Analog Converters Procurement Notes

Verify the specific ordering suffix 'R' indicates reel packaging when confirming part numbers. Ensure compatibility with system requirements by checking the analog supply voltage range of 2.7V to 5.5V and the digital interface voltage range of 1.7V to 5.5V. Confirm that the 28-pin WQFN footprint matches the PCB layout design. Validate thermal performance specifications against the expected operating junction temperature limits.

Digital To Analog Converters Selection Notes

Select this component for designs requiring multiple low-power voltage outputs with high accuracy. The integrated reference simplifies board space and cost compared to solutions requiring external references. Consider the 12-bit resolution and ±1LSB INL for applications demanding precise signal generation. Evaluate the 50mA drive current capability to ensure it meets load requirements without additional buffering stages.

Digital To Analog Converters Part Context

The DAC60516 belongs to the DAC605xx family of multi-channel digital-to-analog converters. This series is designed for applications needing multiple synchronized voltage outputs with minimal external support circuitry. The RUYR variant specifically denotes the 28-pin WQFN package configuration optimized for compact surface-mount assembly.

Digital To Analog Converters Replacement Considerations

Check for pin-compatible alternatives within the same product family if different channel counts or package sizes are required. Verify that any substitute maintains the same 12-bit resolution and buffered voltage output characteristics to ensure functional equivalence in existing designs.
