DBP.5570.N.A.60

Overview

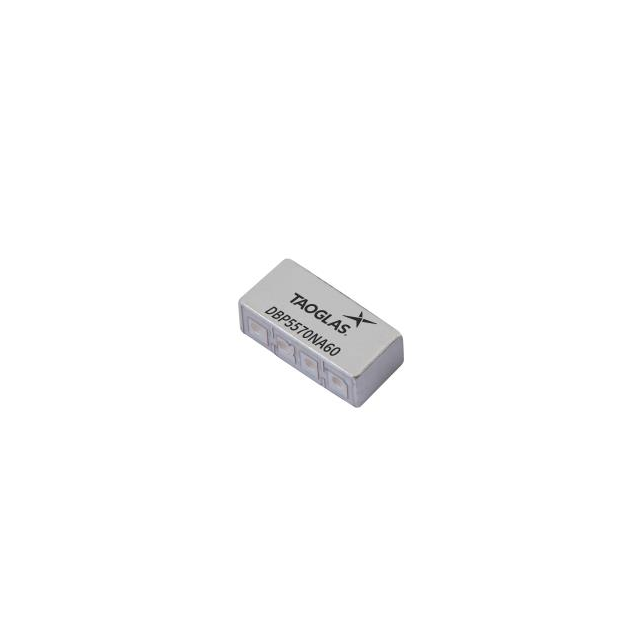

The Taoglas DBP.5570.N.A.60 is a dielectric bandpass RF filter designed for wireless applications. It operates at a center frequency of 5.57 GHz with a bandwidth of 160 MHz and a nominal impedance of 50 Ohms. The component features an insertion loss of 4 dB and functions within a temperature range of -40°C to +85°C. Packaged in a compact 2-SMD, no-lead surface mount format, it measures approximately 3.9 mm x 2.85 mm x 3 mm.

Feature Summary

• Dielectric construction for stable RF performance
• Surface-mount design for automated assembly
• Optimized for out-of-band emission suppression

Applications

• Wireless transmitter protection
• Receiver front-end filtering
• Wi-Fi system integration
• Low Noise Amplifier (LNA) isolation

Procurement Notes

Verify the specific suffix codes against official Taoglas documentation to confirm exact electrical tolerances and termination finishes. Ensure compatibility with standard SMT reflow profiles. Confirm RoHS compliance status through current manufacturer declarations rather than distributor summaries.

Selection Notes

Select this component when a fixed 5.57 GHz center frequency is required for Wi-Fi or industrial bands. The 160 MHz bandwidth suits narrowband applications needing moderate selectivity. Consider the 4 dB insertion loss impact on link budget calculations before finalizing the design.

Part Context

This part belongs to the Taoglas Airvu series of signal conditioning components. These filters are engineered specifically for protecting sensitive RF stages from noisy out-of-band emissions. The series emphasizes compact footprints suitable for modern high-density PCB layouts.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Cross-referencing requires consulting official Taoglas engineering support for equivalent specifications.
