DBP.5787.O.A.60

Overview

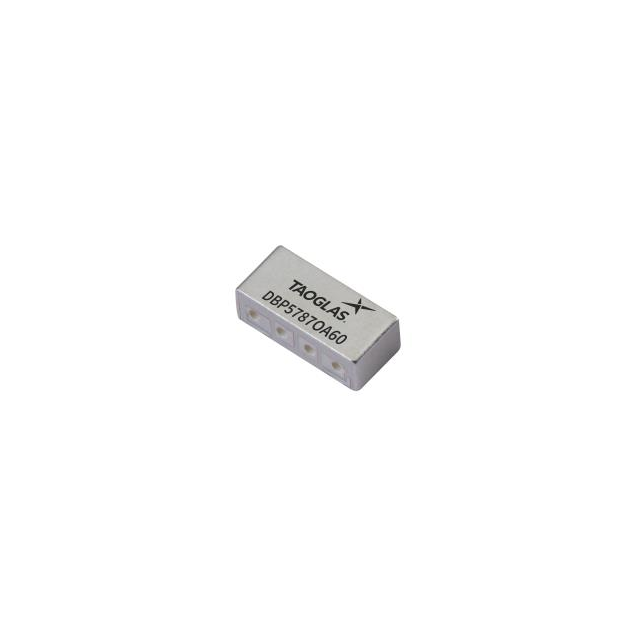

The DBP.5787.O.A.60 is a dielectric bandpass filter manufactured by Taoglas Limited, designed for the 5.787 GHz frequency band. It features a center frequency of 5.787 GHz with a bandwidth of 125 MHz. The component exhibits an insertion loss of 1 dB and a return loss of 2.5 dB. It utilizes a 2-SMD, no-lead package with dimensions of 8.70 mm x 4.00 mm x 3.20 mm. The device operates within a temperature range of -40°C to +85°C and is part of the Airvu series.

Feature Summary

• Dielectric construction for stable RF performance
• Surface-mount design for automated assembly
• Optimized for specific microwave frequency bands

Applications

• Microwave communication systems
• Satellite navigation receivers
• Wireless infrastructure equipment

Procurement Notes

Verify current availability status as the component is listed as obsolete in multiple distributor databases. Confirm if alternative revisions or equivalent models are supported by Taoglas for new designs. Ensure compatibility with existing PCB footprints if replacing active inventory. Contact regional sales for final disposition confirmation before procurement planning.

Selection Notes

Select this component only if the specific 5.787 GHz center frequency and 125 MHz bandwidth align with system requirements. Consider the 2-SMD package size constraints during layout. Evaluate thermal performance within the specified operating temperature range. Verify that the insertion loss characteristics meet link budget calculations for the intended application path.

Part Context

This part belongs to the Taoglas Airvu series of signal conditioning components. It is categorized under RF filters, specifically dielectric bandpass filters. The product line focuses on providing precise frequency selection for high-frequency applications. The model number indicates specific electrical and mechanical parameters defined by the manufacturer.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. As the item is marked obsolete, consult Taoglas directly for potential cross-reference recommendations or updated product lines that match the required specifications.
