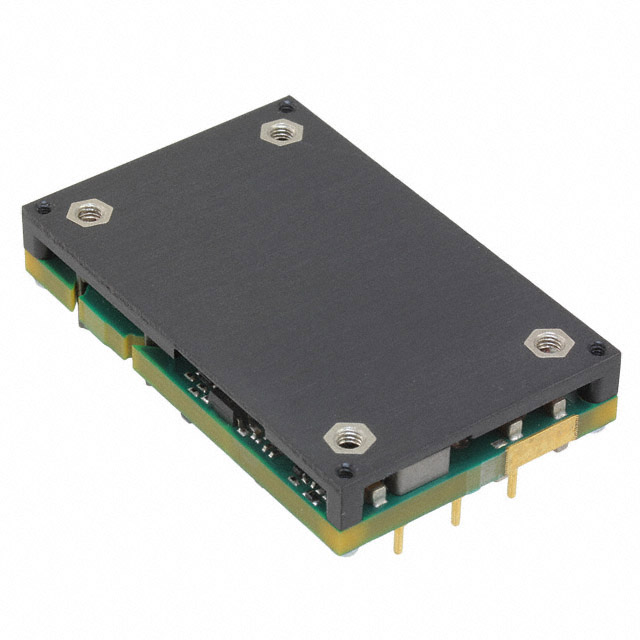

DBQ0135V2P2BC

DBQ0135V2P2BC is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC DC CONVERTER 12V 420W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for DBQ0135V2P2BC

• Description：DC DC CONVERTER 12V 420W
• Series：DBQ (420W)
• Mfr：Murata Power Solutions Inc.
• Package：Tray
• Type：Intermediate Bus Converter
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：35A
• Power (Watts)：420 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：95.20%
• Mounting Type：Through Hole
• Package / Case：16-DIP Module (15 Leads), 1/4 Brick
• Size / Dimension：2.30" L x 1.45" W x 0.52" H (58.4mm x 36.8mm x 13.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for DBQ0135V2P2BC
