DC450K0000S024

Overview

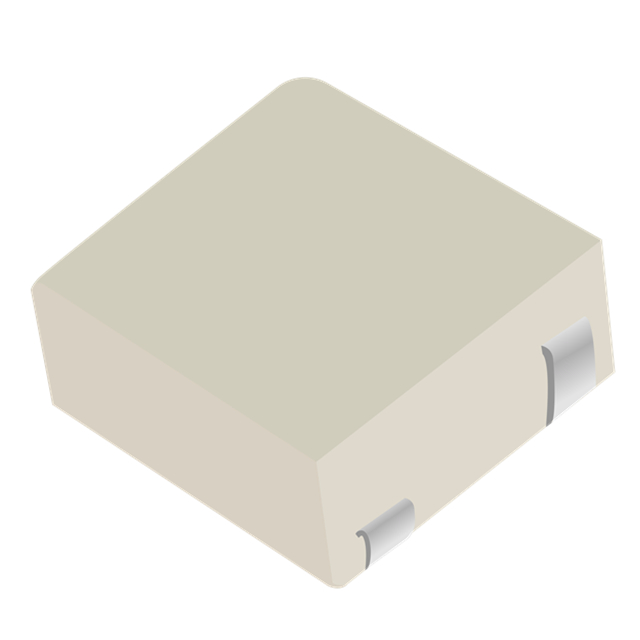

The TGS DC450K0000S024 is a ceramic discriminator filter designed for surface-mount applications. It operates at a center frequency of 450 kHz with a specified bandwidth of 4 kHz. The component belongs to the CDBC series and features a compact 2-SMD package measuring 6.20 mm in length, 6.00 mm in width, and 3.1 mm in height. This device supports signal bandwidths suitable for extensive communication ranges.

Feature Summary

• Functions as a center discriminator ceramic filter for signal processing
• Designed for surface-mount technology (SMT) integration
• Optimized for 450 kHz center frequency operation

Applications

• AM radio receiver circuits
• Intermediate frequency (IF) filtering in communication equipment
• Signal demodulation stages requiring 450 kHz discrimination

Procurement Notes

Verify the specific datasheet version from TGS or authorized distributors to confirm mechanical dimensions and electrical tolerances. Ensure the 2-SMD footprint matches the target PCB layout. Confirm active status and lead-free compliance if required by assembly specifications before finalizing procurement orders.

Selection Notes

Select this component when a fixed 450 kHz center frequency with 4 kHz bandwidth is required for AM detection. The SMD package facilitates automated assembly. Consider thermal management and soldering profiles compatible with ceramic components during design integration.

Part Context

This part is part of TGS's line of ceramic filters, specifically the CDBC series. These components are engineered for stable performance in consumer electronics and industrial communication devices where size constraints and frequency selectivity are critical design factors.

Replacement Considerations

Consult official substitution lists from TGS for direct equivalents. Verify that any alternative maintains the 450 kHz center frequency and 4 kHz bandwidth specifications to ensure circuit compatibility without redesign.
