DC455K0000S132

Overview

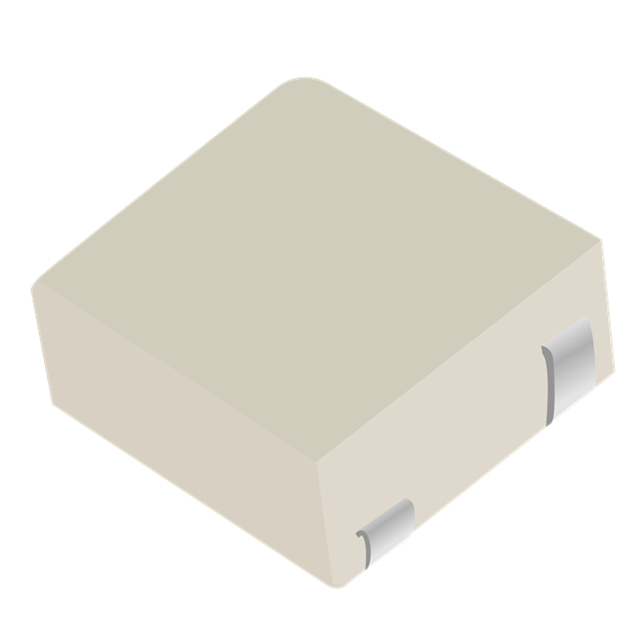

The DC455K0000S132 is a ceramic filter manufactured by TGS, specifically designed as a center discriminator. It operates at a center frequency of 455 kHz and utilizes a 2-SMD surface-mount package. This component is engineered for FM signal processing applications requiring precise frequency discrimination.

Feature Summary

• Integrated center discriminator functionality for FM demodulation
• Surface-mount design for automated assembly

Applications

• FM radio receiver circuits
• Intermediate frequency (IF) filtering stages
• Consumer audio electronics

Procurement Notes

Verify the exact datasheet specifications directly with TGS or authorized distributors before integration. Confirm that the 2-SMD footprint matches your PCB layout requirements. Ensure the 455 kHz center frequency aligns with your system's intermediate frequency standards to guarantee proper discriminator operation.

Selection Notes

Select this component when a dedicated ceramic center discriminator is required for 455 kHz IF stages. The SMD package facilitates compact board designs. Verify compatibility with existing circuit impedance and loading conditions to maintain optimal selectivity and distortion performance in the target application.

Part Context

This part belongs to TGS's line of ceramic filters, which are widely used in communication and audio equipment. The DC series typically denotes specific discriminator configurations within their portfolio, offering reliable performance for standard broadcast frequencies.

Replacement Considerations

Consult official substitution lists from TGS for direct equivalents. Generic replacements may differ in bandwidth or insertion loss characteristics. Verify pinout and mechanical dimensions if considering alternative manufacturers.
