DC60

Power Line Filter Modules Overview

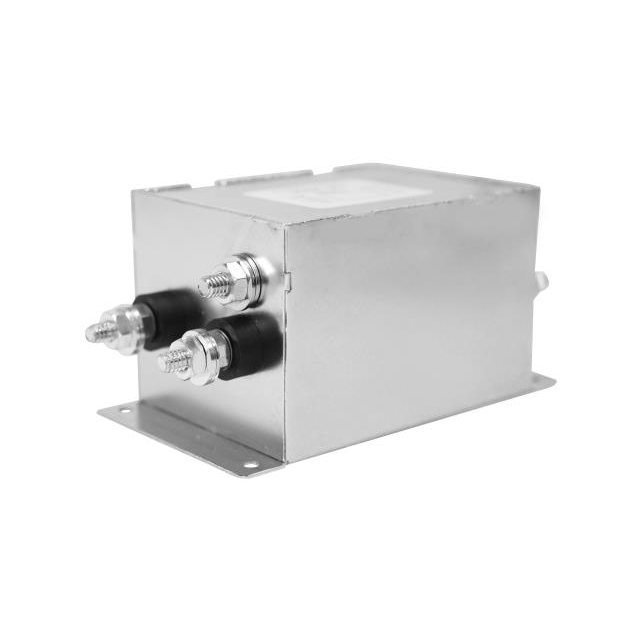

The Astrodyne TDI DC60 is a single-stage DC EMC/EMI line filter designed for high-current applications. It supports a rated voltage of 60 VDC and handles up to 60 A. The unit utilizes a threaded post interface, specifically 5/16-18, for secure electrical connections. This component is engineered to suppress electromagnetic interference in direct current power lines, ensuring signal integrity and compliance with relevant standards.

Power Line Filter Modules Feature Summary

• Single-stage filtering architecture for efficient noise suppression
• High current capacity suitable for demanding DC power systems
• Threaded post connection method for robust mounting

Power Line Filter Modules Applications

• Industrial automation power distribution
• Telecommunications equipment DC power feeds
• Medical device power supply inputs

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision and mechanical dimensions against your chassis design requirements. Confirm that the 5/16-18 threaded post interface matches your existing busbar or terminal hardware. Ensure the 60 A rating aligns with your system's maximum continuous load to prevent thermal issues. Check for any specific environmental certifications required for your deployment region.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for your noise attenuation needs. It is appropriate for systems operating at 60 VDC where high current handling is critical. Consider the physical size and mounting constraints associated with the threaded post design. Evaluate if the standard attenuation characteristics meet your specific EMI/EMC regulatory targets.

Power Line Filter Modules Part Context

This component belongs to the DC series of power line filters from Astrodyne TDI. These filters are part of a broader portfolio of EMI/EMC solutions designed for industrial and commercial use. The series focuses on providing reliable noise suppression for direct current applications across various sectors.

Power Line Filter Modules Replacement Considerations

Consult official manufacturer documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without verifying electrical and mechanical specifications.
