DCM181320V1-332NHF

Common Mode Chokes Overview

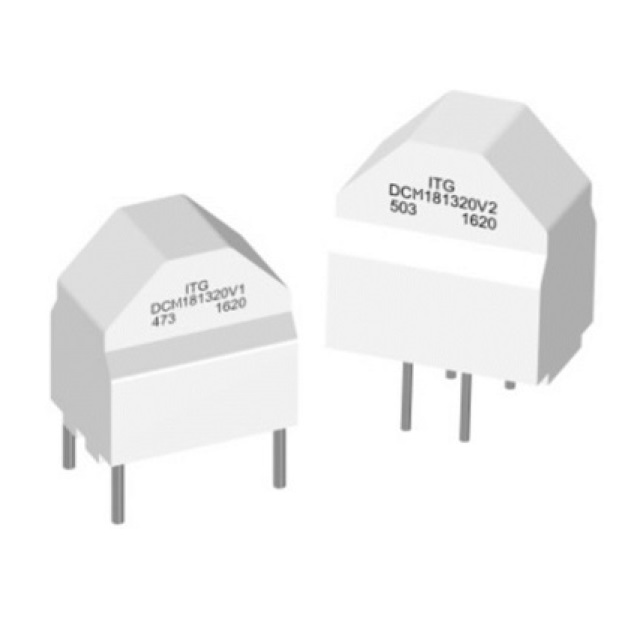

The DCM181320V1-332NHF is a two-line common mode choke manufactured by ITG Electronics, Inc. designed for through-hole mounting. It provides an inductance of 3.3 mH at a test frequency of 10 kHz and supports a current rating of 1.5 A. The component features a DC resistance (DCR) of 140 mOhm. This filter is engineered to suppress electromagnetic interference in dual-line circuits.

Common Mode Chokes Feature Summary

• Two-line configuration for differential signal filtering
• Through-hole mounting technology for robust mechanical attachment
• High inductance value for effective noise attenuation

Common Mode Chokes Applications

• Power supply input filtering
• Data line noise suppression
• Electromagnetic interference reduction in electronic assemblies

Common Mode Chokes Procurement Notes

Verify the exact datasheet from ITG Electronics, Inc. before integration. Confirm that the 1.5 A current rating and 140 mOhm DC resistance meet your circuit requirements. Ensure the through-hole package dimensions align with your PCB layout. Check for RoHS compliance status if required by your manufacturing standards.

Common Mode Chokes Selection Notes

Select this component when a 3.3 mH inductance is required for common mode noise rejection in low-current applications up to 1.5 A. The low DC resistance minimizes power loss in the signal path. Consider the physical size and lead spacing for through-hole assembly compatibility within the target enclosure.

Common Mode Chokes Part Context

This part belongs to the DCM series of common mode chokes from ITG Electronics, Inc. The series offers various inductance values and current ratings. The DCM181320V1-332NHF specifically targets applications requiring moderate inductance with high current handling capabilities in a standard through-hole form factor.

Common Mode Chokes Replacement Considerations

Check for direct substitutes with identical 3.3 mH inductance, 1.5 A rating, and 140 mOhm DCR. Verify pinout and mechanical footprint compatibility. Ensure the replacement maintains the same through-hole mounting style and voltage rating.
