DCM232315H-102NHF

Common Mode Chokes Overview

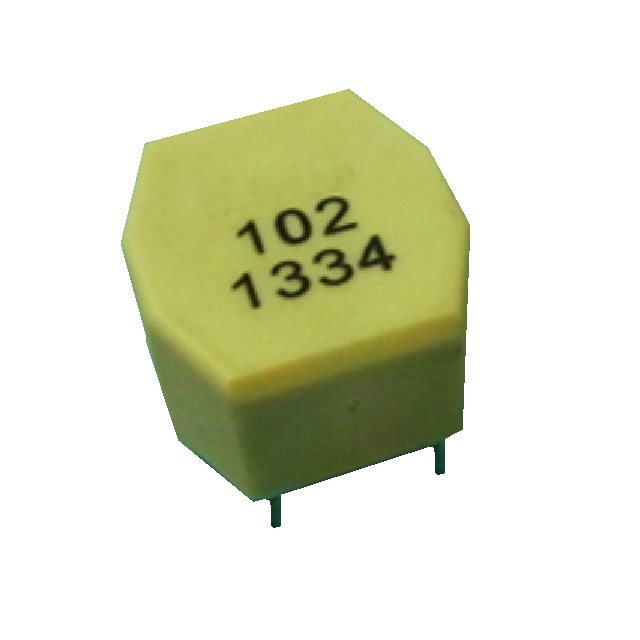

The DCM232315H-102NHF is a two-line common mode choke manufactured by ITG Electronics, Inc. It features an inductance of 1 mH measured at 10 kHz and supports a current rating of 5 A. The component utilizes a through-hole mounting style with a DC resistance (DCR) of 35 mOhm. Designed for power line applications, it operates within a temperature range of -55°C to +130°C and complies with RoHS standards.

Common Mode Chokes Feature Summary

• Provides effective common mode noise suppression for two-line circuits
• Utilizes a through-hole design for secure PCB insertion
• Constructed with UL94-V0 rated plastic headers

Common Mode Chokes Applications

• Power line EMI filtering
• Switch mode power supply input stages
• General electronic equipment noise reduction

Common Mode Chokes Procurement Notes

Verify the specific part number DCM232315H-102NHF against official ITG Electronics documentation to confirm electrical parameters such as 1 mH inductance and 5 A current rating. Ensure compatibility with required through-hole mounting configurations and operating temperature ranges before procurement.

Common Mode Chokes Selection Notes

Select this component when a 1 mH common mode choke is required for two-line power applications. Consider the 35 mOhm DC resistance and 5 A current handling capability relative to circuit requirements. Verify that the through-hole package fits the target PCB layout constraints.

Common Mode Chokes Part Context

This component belongs to the DCM232315H series from ITG Electronics, Inc., a manufacturer established in 1963 specializing in magnetic components and EMI filters. The series includes various inductance values tailored for power line filtering and switch mode power supply applications.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult ITG Electronics directly for equivalent or cross-reference options.
