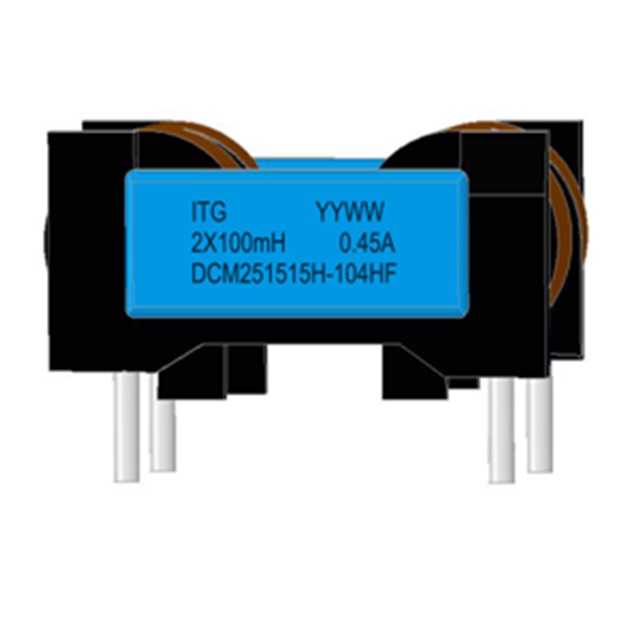

DCM251515H-104HF

Common Mode Chokes Overview

The DCM251515H-104HF is a two-line common mode choke manufactured by ITG Electronics, Inc., designed for power line filtering applications. It provides an inductance of 100 mH at 10 kHz and supports a maximum current rating of 450 mA. The component features a DC resistance of 2.67 Ohms and withstands voltages up to 1.5 kV. It operates within a temperature range of -55°C to +130°C and utilizes a through-hole mounting type.

Common Mode Chokes Feature Summary

• Designed for suppressing electromagnetic interference in power line applications
• Two-line configuration for effective common mode noise reduction
• Through-hole mounting for secure PCB integration

Common Mode Chokes Applications

• Power line filtering
• Electromagnetic interference suppression
• Common mode noise reduction in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific part number DCM251515H-104HF against official ITG Electronics documentation to ensure accuracy. Confirm that the required electrical parameters, including 100 mH inductance and 450 mA current rating, match your design specifications. Check for any specific handling or storage requirements mentioned in the manufacturer's datasheet before procurement.

Common Mode Chokes Selection Notes

Select this component when a two-line common mode choke with 100 mH inductance at 10 kHz is required. Ensure the circuit can accommodate the 2.67 Ohm DC resistance and 450 mA current limit. Verify that the operating temperature range of -55°C to +130°C suits the application environment. Confirm through-hole mounting compatibility with the PCB layout.

Common Mode Chokes Part Context

This component belongs to the DCM251515H series from ITG Electronics, Inc., which includes variants like DCM251515H-393HF and DCM251515H-473HF. These parts are active products designed for power line filtering. The series offers different inductance values while maintaining similar form factors and mounting types for consistent integration across various designs.

Common Mode Chokes Replacement Considerations

Consider the DCM251515H-393HF or DCM251515H-473HF if different inductance values are needed within the same series. Ensure any substitute maintains the two-line configuration and through-hole mounting. Verify that the replacement part meets the 450 mA current rating and 1.5 kV voltage withstand requirements.
