DCM282818H-222NHF

Common Mode Chokes Overview

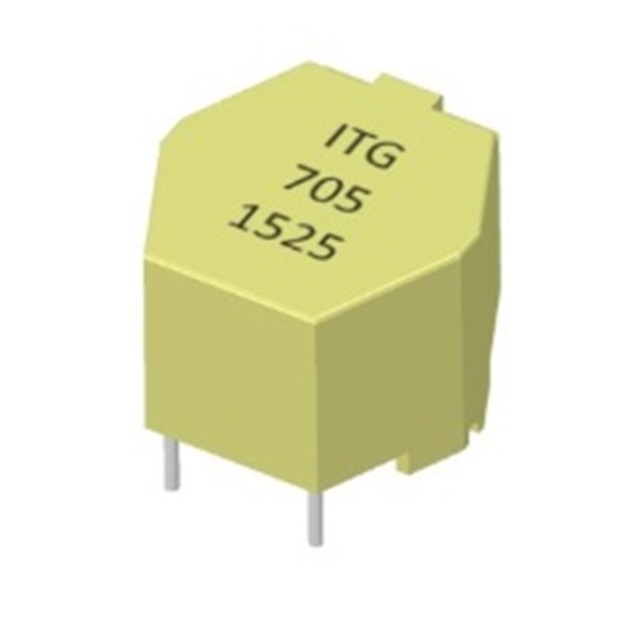

The DCM282818H-222NHF is a two-line common mode choke from the DCM282818H series by ITG Electronics, Inc. Designed for through-hole mounting, this component provides power line filtering with an inductance of 2.2 mH measured at 10 kHz. It supports a current rating of 6 A and features a DC resistance (DCR) of 34 mΩ. The device operates within a temperature range of -55°C to +130°C and complies with RoHS standards.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for dual-line power circuits
• Engineered for high thermal stability across extended operating temperatures
• Constructed for reliable through-hole integration into printed circuit boards

Common Mode Chokes Applications

• Power line filtering in electronic equipment
• Noise suppression in AC/DC power supplies
• EMI reduction in industrial control systems

Common Mode Chokes Procurement Notes

Verify the complete part number including the suffix to ensure correct inductance and tolerance specifications. Confirm that the through-hole package dimensions match the target PCB footprint. Check RoHS compliance status if required by regulatory standards. Ensure the 6 A current rating meets the application's peak load requirements without saturation.

Common Mode Chokes Selection Notes

Select this component when a 2.2 mH inductance at 10 kHz is required for common mode noise attenuation. The 6 A current rating suits moderate power applications. The 34 mΩ DC resistance minimizes voltage drop. Verify that the through-hole form factor aligns with assembly processes. Consider the -55°C to +130°C range for environmental suitability.

Common Mode Chokes Part Context

This component belongs to the DCM282818H series of common mode chokes manufactured by ITG Electronics, Inc. The series offers various inductance values tailored for power line filtering. The DCM282818H-222NHF specifically denotes the 2.2 mH variant with standard tolerance. It is designed for robust performance in demanding electrical environments.

Common Mode Chokes Replacement Considerations

Direct substitutes include other DCM282818H series parts with identical mechanical and electrical profiles but different inductance values, such as DCM282818H-103NHF or DCM282818H-253NHF, provided the circuit design accommodates the changed impedance characteristics.
