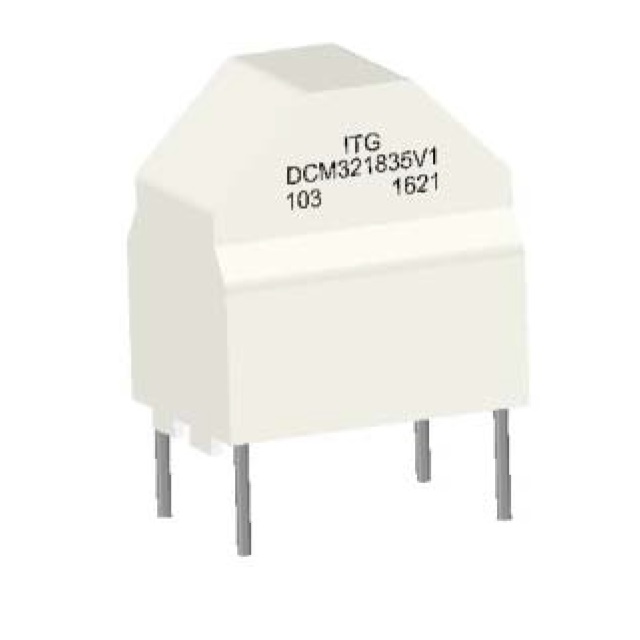

DCM321835V1-103NHF

$6.80

Description：10,000uH, 155mOhm, 3Amp DIP CMC
Series：DCM321835V
Mfr：ITG Electronics, Inc.
Package：Bulk

SKU:f98ecdb04839 Category: Common Mode Chokes Brand: ITG Electronics, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DCM321835V1-103NHF is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists ITG Electronics, Inc.. Its product description is 10,000uH, 155mOhm, 3Amp DIP CMC. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DCM321835V1-103NHF

Description：10,000uH, 155mOhm, 3Amp DIP CMC
Series：DCM321835V
Mfr：ITG Electronics, Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：155mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-55°C ~ 130°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.280" L x 0.728" W (32.50mm x 18.50mm)
Height (Max)：1.398" (35.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：10 mH @ 10 kHz
Impedance @ Frequency：-
