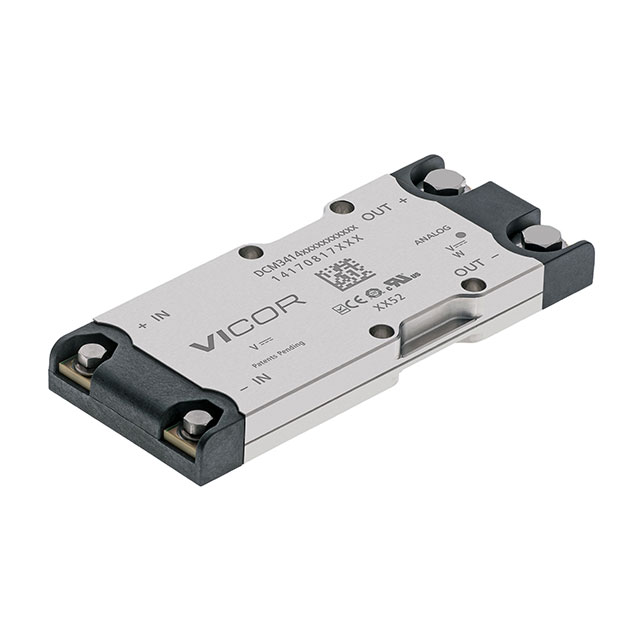

DCM3414B50M31C2M09 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Vicor Corporation. Its product description is VDCM 3414 28V 28V/320W M LA. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for DCM3414B50M31C2M09
- Description：VDCM 3414 28V 28V/320W M LA
- Series：DCM™
- Mfr：Vicor Corporation
- Package：Box
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：16V
- Voltage - Input (Max)：50V
- Voltage - Output 1：28V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：11.43A
- Power (Watts)：320 W
- Voltage - Isolation：1.5 kV
- Applications：ITE (Commercial)
- Features：Adjustable Output, Remote On/Off, Remote Sense
- Operating Temperature：-55°C ~ 125°C (With Derating)
- Efficiency：93.30%
- Mounting Type：Through Hole
- Package / Case：9-DIP Module
- Size / Dimension：3.38" L x 1.40" W x 0.37" H (85.9mm x 35.5mm x 9.4mm)
- Supplier Device Package：-
- Control Features：Enable, Active Low
- Approval Agency：CE, cTUVus, cURus
- Standard Number：60950-1
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for DCM3414B50M31C2M09
