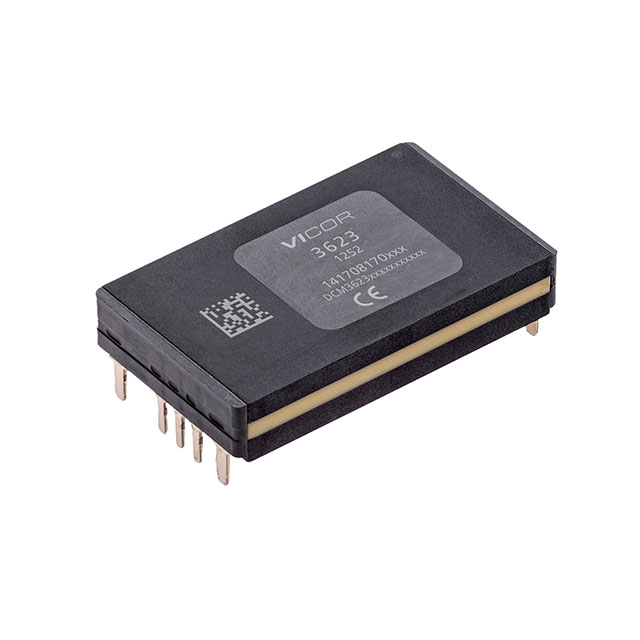

DCM3623T75H17C2T00

DCM3623T75H17C2T00 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Vicor Corporation. Its product description is DC DC CONVERTER 15V 321W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for DCM3623T75H17C2T00

• Description：DC DC CONVERTER 15V 321W
• Series：VI Chip® DCM® (320W)
• Mfr：Vicor Corporation
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：21.4A
• Power (Watts)：321 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 125°C
• Efficiency：92.20%
• Mounting Type：Through Hole
• Package / Case：9-DIP Module
• Size / Dimension：1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for DCM3623T75H17C2T00
