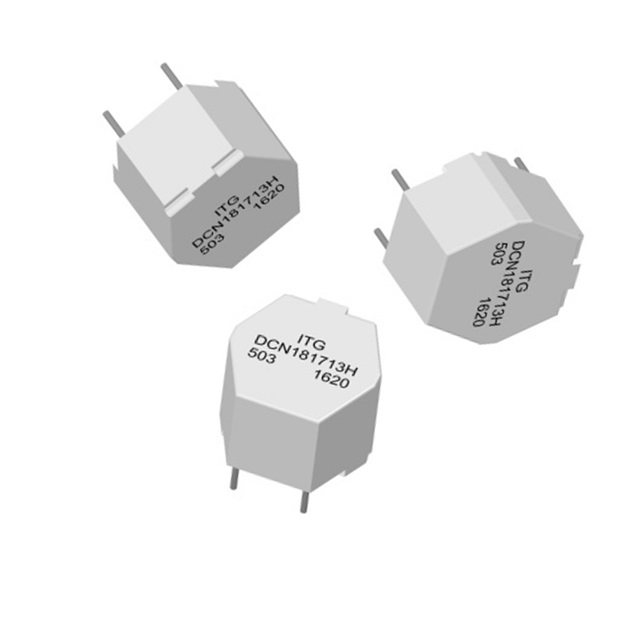

DCN181713H-701HF is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists ITG Electronics, Inc.. Its product description is CMC 700UH 6.5A 2LN THROUGH HOLE. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DCN181713H-701HF
- Description：CMC 700UH 6.5A 2LN THROUGH HOLE
- Series：DCN181713H
- Mfr：ITG Electronics, Inc.
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：6.5A
- DC Resistance (DCR) (Max)：10mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.709" L x 0.689" W (18.00mm x 17.50mm)
- Height (Max)：0.512" (13.00mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：700 µH @ 10 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for DCN181713H-701HF
Common Mode Chokes Overview
The DCN181713H-701HF is a two-line common mode choke manufactured by ITG Electronics, Inc. It features an inductance of 700 µH measured at 10 kHz and supports a current rating of 6.5 A. The component utilizes a through-hole mounting type with a direct current resistance (DCR) of 10 mΩ. It operates within a temperature range of -40°C to 125°C.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for two-line circuits
- Designed for through-hole PCB integration
- Operates reliably across extended industrial temperature ranges
Common Mode Chokes Applications
- Power supply filtering
- Battery charger circuits
- Portable electronic devices
- Energy-efficient system designs
Common Mode Chokes Procurement Notes
Verify the specific part number DCN181713H-701HF against official ITG Electronics documentation to confirm active status and exact electrical parameters. Ensure compatibility with through-hole assembly processes and verify that the 6.5 A current rating meets the target application requirements before procurement.
Common Mode Chokes Selection Notes
Select this component when designing circuits requiring 700 µH common mode inductance at 10 kHz. The 6.5 A current capacity and low DCR make it suitable for power lines where thermal management is critical. Confirm that the physical dimensions fit the available board space for through-hole mounting.
Common Mode Chokes Part Context
This component belongs to the DCN181713H series of common mode chokes from ITG Electronics, Inc. The series is categorized under electronic filters designed for noise suppression. The product status is listed as active, indicating ongoing manufacturing and availability for new design implementations.
Common Mode Chokes Replacement Considerations
Consult official ITG Electronics substitution guides for verified alternatives. Cross-reference inductance values, current ratings, and physical footprint dimensions to ensure functional equivalence without modifying the existing circuit layout.
