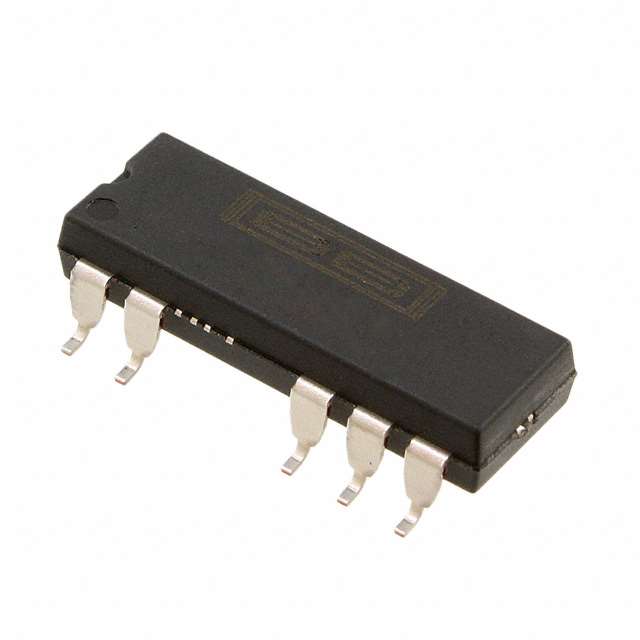

DCP010515DBP-U/700 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is DC DC CONVERTER +/-15V 1W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for DCP010515DBP-U/700
- Description：DC DC CONVERTER +/-15V 1W
- Series：DCP01B (1W)
- Mfr：Texas Instruments
- Package：Tape & Reel (TR)
- Type：Isolated Module
- Number of Outputs：2
- Voltage - Input (Min)：4.5V
- Voltage - Input (Max)：5.5V
- Voltage - Output 1：15V
- Voltage - Output 2：-15V
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：33mA, 33mA
- Power (Watts)：1 W
- Voltage - Isolation：1 kV
- Applications：ITE (Commercial)
- Features：OTP, SCP
- Operating Temperature：-40°C ~ 100°C
- Efficiency：85%
- Mounting Type：Surface Mount
- Package / Case：14-SMD Module, 7 Leads
- Size / Dimension：0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
- Supplier Device Package：-
- Control Features：Enable, Active High
- Approval Agency：-
- Standard Number：-
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for DCP010515DBP-U/700
