DD160N22KHPSA2

$126.30

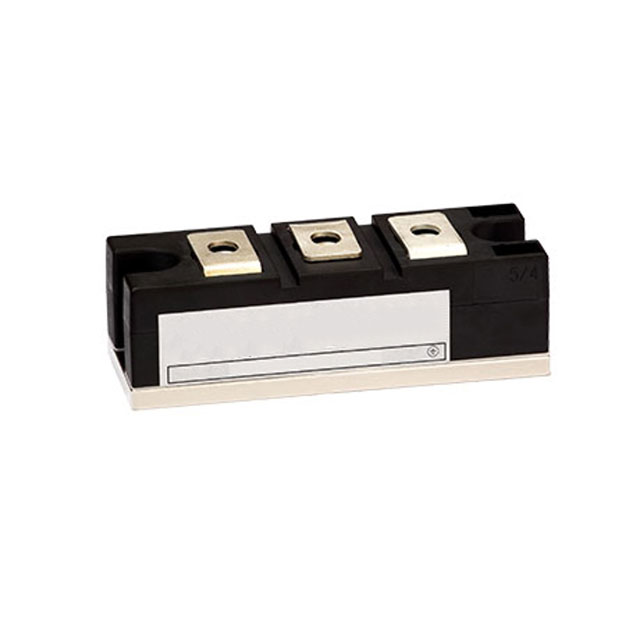

Description：DIODE MODULE GEN PURP 2200V 172A
Series：DD160N

SKU:4f921702ff60 Category: Diode Arrays Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DD160N22KHPSA2 is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is DIODE MODULE GEN PURP 2200V 172A. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for DD160N22KHPSA2

Description：DIODE MODULE GEN PURP 2200V 172A
Series：DD160N
Mfr：Infineon Technologies
Package：Tray
Diode Configuration：1 Pair Series Connection
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：2200 V
Current - Average Rectified (Io) (per Diode)：172A
Voltage - Forward (Vf) (Max) @ If：1.4 V @ 500 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：20 mA @ 2200 V
Operating Temperature - Junction：150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Diode Arrays datasheet and documents for DD160N22KHPSA2

DD160N22KHPSA2

Diode Arrays Overview

The DD160N22KHPSA2 is a silicon diode module manufactured by Infineon Technologies. It features a reverse voltage of 2200V and a forward current rating of 172A. The device utilizes a scalable power module solution with a flexible pin grid system, suitable for customizing layout and pinout configurations. It offers a forward voltage of 1.35V at 100A and supports up to 500W power dissipation.

Diode Arrays Feature Summary

Scalable power module architecture with flexible pin grid system
High voltage capability with 2200V reverse blocking
Optimized thermal performance supporting 500W power dissipation

Diode Arrays Applications

Industrial power conversion systems
Customizable high-power rectifier circuits
Medium to high voltage DC applications

Diode Arrays Procurement Notes

Verify the specific revision suffix and packaging configuration against official Infineon documentation before ordering. Confirm lead times and availability status directly with authorized distributors, as supply chain conditions may vary. Ensure that the flexible pin grid requirements align with the target PCB design constraints prior to procurement.

Diode Arrays Selection Notes

Select this component when a high-voltage diode module with customizable interconnect options is required. The flexible pin grid system allows for tailored layout designs, making it suitable for applications where standard footprints are insufficient. Evaluate the 172A current rating and 2200V blocking capability against the specific circuit demands to ensure adequate headroom and reliability under operating conditions.

Diode Arrays Part Context

This part belongs to Infineon's series of scalable power modules designed for industrial applications. It complements other high-voltage diode solutions by offering enhanced layout flexibility through its unique pin grid system. The module is engineered to meet the rigorous demands of modern power electronics, providing a robust alternative to traditional discrete or fixed-footprint modules in high-performance environments.
