DEA070960LT-4006B1

Overview

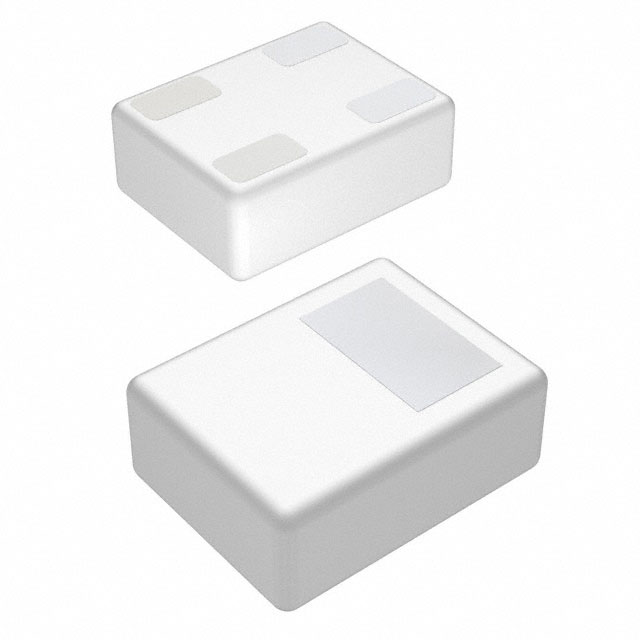

The TDK DEA070960LT-4006B1 is a low-pass filter utilizing LTCC technology, designed for the 824–960 MHz frequency band. It features a 50 Ohm impedance and operates within a temperature range of -40°C to +85°C. The component is housed in a compact 0202 (0505 metric) surface-mount package with dimensions of 0.65mm length, 0.50mm width, and 0.25mm thickness. It supports board mounting via SMD/SMT termination and is supplied in reel packaging.

Feature Summary

• Utilizes Low Temperature Co-fired Ceramic (LTCC) construction for high reliability
• Optimized for specific cellular communication bands including GSM, UMTS, LTE, and 5G
• Compact 0202 surface-mount footprint suitable for space-constrained designs

Applications

• GSM wireless communication systems
• UMTS network infrastructure
• LTE device front-ends
• 5G connectivity modules

Procurement Notes

Verify current availability as this item may be subject to factory special order status. Confirm lead times directly with the manufacturer or authorized distributors, as standard stock levels are not guaranteed. Ensure ordering quantities align with the specified reel packaging requirements. Cross-reference the full part number to confirm exact suffix specifications before purchase.

Selection Notes

Select this component when a low-pass filter is required for the 824–960 MHz range with strict size constraints. The 0202 package offers minimal board area usage compared to larger alternatives. Ensure the design environment supports the -40°C to +85°C operating temperature range. Verify that the 50 Ohm system impedance matches the surrounding circuitry for optimal signal integrity.

Part Context

This component belongs to the TDK DEA series of RF filters. The series utilizes LTCC technology to provide stable filtering performance in compact packages. These filters are engineered for modern mobile communication standards, offering precise frequency selection and harmonic suppression for wireless transceivers.

Replacement Considerations

Consult official TDK documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical parameters and physical dimensions against the original datasheet.

FAQ

What is the physical package size of the DEA070960LT-4006B1?

The component is housed in a 0202 (0505 metric) surface-mount package with dimensions of 0.65mm x 0.50mm x 0.25mm.

Is the DEA070960LT-4006B1 suitable for 5G applications?

Yes, the datasheet explicitly lists 5G among its supported applications alongside GSM, UMTS, and LTE.
