DEA075150HT-8036A1

Overview

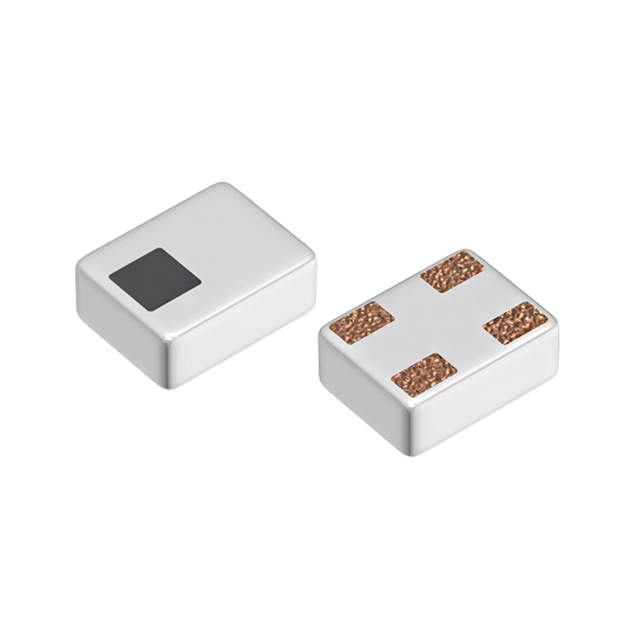

The DEA075150HT-8036A1 is a high-pass RF filter manufactured by TDK Corporation, designed for surface-mount applications. It operates at a frequency of 5GHz with a bandwidth of 0.5dB. The component utilizes a 0202 (0505 Metric) package, measuring 0.65mm in length, 0.50mm in width, and 0.30mm in maximum height. It features four PC pads for mounting and is rated for an operating temperature range of -40°C to 85°C. The device complies with RoHS3 standards and carries an MSL rating of 1.

Feature Summary

• High-pass filtering capability for radio frequency signal processing
• Compact 0202 surface-mount package design for space-constrained layouts
• Operational stability within a wide industrial temperature range

Applications

• General electronic equipment
• Audiovisual equipment
• Telecommunications equipment

Procurement Notes

Verify the specific ordering suffix to ensure correct packaging configuration, such as tape and reel or cut tape, as these affect handling procedures. Confirm that the required quantity aligns with standard manufacturing reels to minimize waste. Check for any recent product change notices regarding assembly or material composition updates before finalizing procurement plans.

Selection Notes

Select this component when a compact high-pass filter is required for 5GHz applications. Ensure the PCB footprint matches the 0202 metric dimensions. Verify that the system's thermal environment remains within the specified -40°C to 85°C operational range. Consider the low insertion loss characteristics if signal integrity is critical in the RF path.

Part Context

This part belongs to TDK's DEA series of RF filters, which are engineered for general-purpose electronic applications. The series offers various configurations to support different frequency bands and impedance requirements. These components are widely used in modern communication devices where small form factors and reliable performance are essential.

Replacement Considerations

Consult official TDK documentation for direct substitutes. Cross-referencing requires matching the 5GHz frequency, high-pass topology, and 0202 package dimensions. Verify electrical parameters against the original datasheet to ensure compatibility.
