DEA102700LT-6307A2

Overview

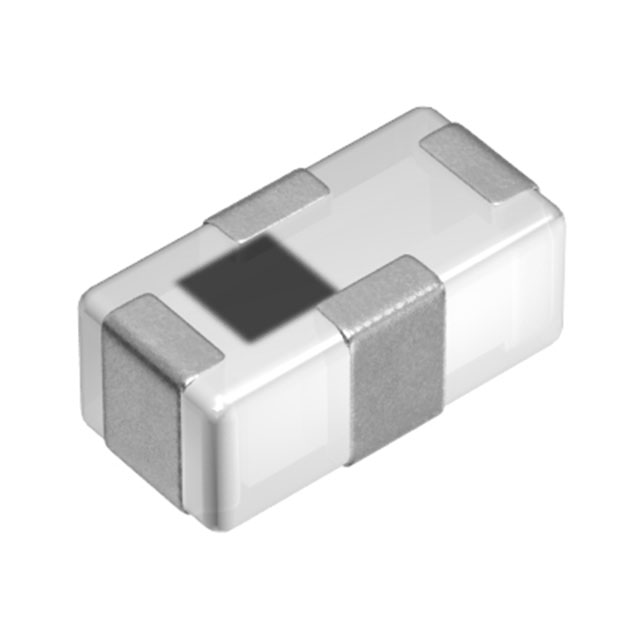

The DEA102700LT-6307A2 is a multilayer low-pass RF filter manufactured by TDK Corporation. It operates within the 2400-2700 MHz frequency range with a center frequency of 2.45 GHz. The component utilizes a 0402 (1005 Metric) surface-mount package, measuring 1.00 mm in length and 0.50 mm in width. It features four pins for circuit integration and is designed for commercial-grade applications.

Feature Summary

• Multilayer ceramic construction for reliable signal filtering
• Surface-mount design compatible with automated assembly processes
• Optimized for high-frequency radio frequency applications

Applications

• Wireless communication systems operating in the 2.4 GHz band
• RF front-end modules requiring low-pass filtering
• Commercial electronic devices utilizing ISM band frequencies

Procurement Notes

Verify the complete part number including suffixes to ensure correct specifications. Confirm package dimensions and pin configuration match your PCB layout requirements. Check manufacturer documentation for detailed electrical characteristics and handling instructions before integration.

Selection Notes

Select this component when a compact low-pass filter is required for 2.45 GHz applications. Ensure the 0402 footprint fits your board space constraints. Verify thermal and electrical performance meets system standards for commercial grade environments.

Part Context

This device belongs to the DEA series of RF filters from TDK. It is specifically engineered for signal conditioning in wireless technologies. The multilayer technology allows for miniaturization while maintaining performance in dense circuit layouts.

Replacement Considerations

Consult official substitution lists for verified equivalents. Ensure any replacement matches the 0402 package and 2.45 GHz frequency range. Verify compatibility with existing PCB footprints and electrical parameters.
