DEA160770LT-5008B1

Overview

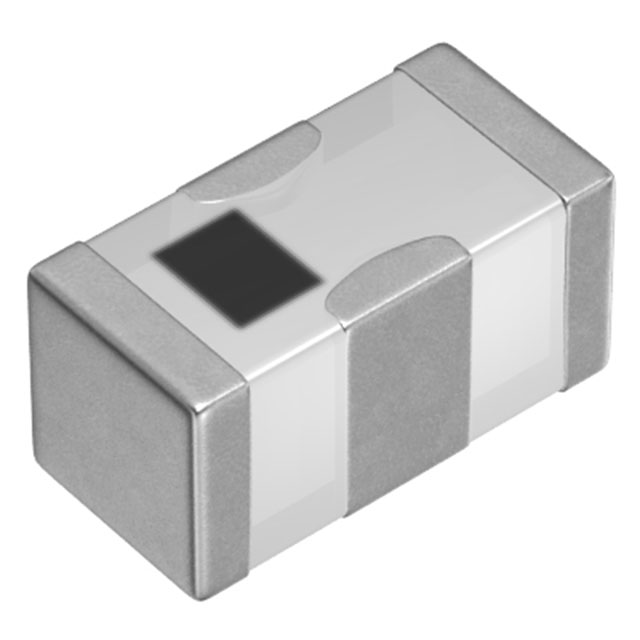

The DEA160770LT-5008B1 is a low-pass RF filter manufactured by TDK Corporation, designed for surface-mount assembly in the 0603 (1608 metric) package. It features a center frequency of 620MHz and a bandwidth of 300MHz with an insertion loss of 0.4dB. The component measures 1.60mm x 0.80mm x 0.60mm maximum height. It complies with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.

Feature Summary

• Low insertion loss characteristic for efficient signal transmission
• Compact 0603 surface-mount footprint for space-constrained designs
• RoHS3 compliant construction

Applications

• GSM wireless communication systems
• W-CDMA network infrastructure
• LTE cellular devices

Procurement Notes

Verify current availability status as this part may be obsolete or not recommended for new designs. Confirm lead times and substitute options through authorized distributors. Check for recent Product Change Notices regarding manufacturing updates or end-of-life declarations before finalizing procurement plans.

Selection Notes

Select this component for applications requiring a low-pass filter centered at 620MHz with a 300MHz bandwidth. Ensure the design accommodates the 0603 package dimensions and 0.4dB insertion loss specification. Verify compatibility with GSM, W-CDMA, or LTE frequency bands.

Part Context

This component belongs to the DEA series of RF filters from TDK Corporation. These filters are engineered for mobile phone, WLAN, and Bluetooth applications, emphasizing small volume, thin profile, and lightweight characteristics suitable for modern wireless connectivity solutions.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TDK technical support or authorized distributors for verified alternatives if this obsolete part is required.
