DEA160960LT-1169AA

Overview

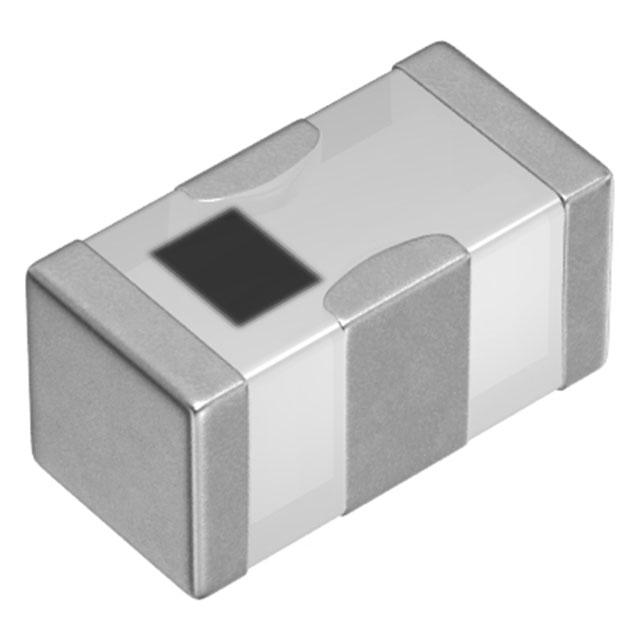

The DEA160960LT-1169AA is a multilayer low-pass filter manufactured by TDK Corporation, designed for surface-mount applications in the 0603 (1608 Metric) package. This component features a six-pad configuration with physical dimensions of 1.60mm length and 0.80mm width. It operates as a commercial-grade signal conditioning device with a cutoff frequency of 892 MHz. Key electrical specifications include an insertion loss of 0.73 dB and a bandwidth of 136 MHz.

Feature Summary

• Multilayer construction for compact RF filtering
• Surface-mount design compatible with automated assembly
• Low insertion loss characteristics for signal integrity

Applications

• Wireless connectivity modules
• Smartphone RF front-ends
• IoT device signal conditioning

Procurement Notes

Verify current manufacturing status as sources indicate potential obsolescence. Confirm RoHS compliance details and exact package pinout before integration. Ensure compatibility with existing PCB footprint designs given the specific 0603 dimensions.

Selection Notes

Select this component for applications requiring a 892 MHz low-pass response in a minimal footprint. Consider the 0.73 dB insertion loss impact on system sensitivity. Evaluate availability constraints due to potential end-of-life status compared to newer series alternatives.

Part Context

This part belongs to the DEA16-L series of passive components from TDK. It serves as a specialized RF filter within the broader signal conditioning category, targeting high-frequency noise suppression in portable electronic devices where space is limited.

Replacement Considerations

Check for direct substitutes within the DEA16 series or updated TDK RF filter lines if this specific suffix is discontinued. Verify equivalent cutoff frequencies and package compatibility when sourcing alternatives.
