Product Detailed Parameters
- Description：RF FILTER HIGH PASS 2.4GHZ 0603
- Series：DEA
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency：2.4GHz
- Bandwidth：-
- Filter Type：High Pass
- Ripple：-
- Insertion Loss：0.5dB
- Mounting Type：Surface Mount
- Package / Case：0603 (1608 Metric), 3 PC Pad
- Size / Dimension：0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height (Max)：0.026" (0.65mm)
Download product information
Overview

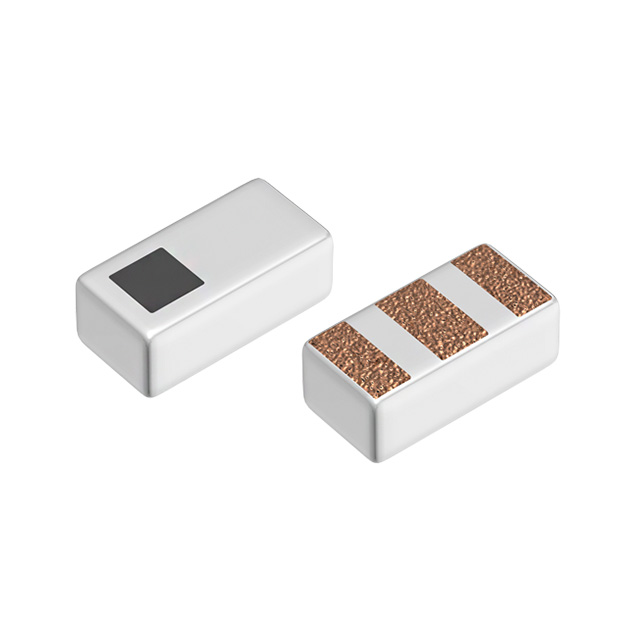

The DEA162300HT-8047A1 is a high-pass RF filter manufactured by TDK Corporation, designed for operation at a center frequency of 2.4GHz. It features a bandwidth specification of 0.5dB and an insertion loss of 0.7dB within the 2300MHz to 2400MHz range. The component operates with a 50Ohm impedance and utilizes a surface-mount 0603 (1608 Metric) package with a 3 PC pad configuration. Physical dimensions are 1.60mm in length, 0.80mm in width, and a maximum height of 0.65mm. It is RoHS3 compliant and classified under ECCN EAR99.
Feature Summary
- High-pass filtering capability optimized for 2.4GHz frequency bands
- LTCC construction ensuring stable performance in RF applications
- Compact 0603 surface-mount footprint for space-constrained designs
Applications
- Wireless LAN systems operating in the 2.4GHz ISM band
- Bluetooth device signal conditioning
- RF front-end modules requiring high-pass characteristics
Procurement Notes
Verify the specific ordering suffix to ensure correct packaging type, such as Tape & Reel or Cut Tape, as these affect handling but not electrical function. Confirm RoHS3 compliance status if required by environmental regulations. Check moisture sensitivity level ratings prior to soldering to prevent damage during assembly processes.
Selection Notes
Select this component when a high-pass filter is required for 2.4GHz applications with strict size constraints due to its 0603 package. Ensure the system impedance matches the 50Ohm specification for optimal power transfer. Consider the insertion loss and bandwidth specifications against the specific signal integrity requirements of the target application.
Part Context
This part belongs to TDK's DEA series of LTCC RF filters. These components are engineered for wireless connectivity solutions, providing reliable signal filtering in compact form factors suitable for modern mobile and IoT devices. The series supports various frequency bands and filter types to meet diverse RF design needs.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative components based on identical electrical parameters and physical footprint before implementation.
