DEA163300HT-8062A1

Overview

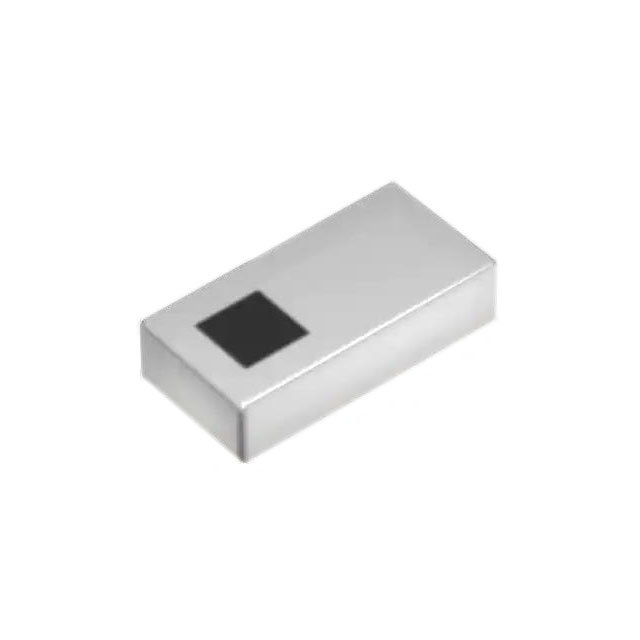

DEA163300HT-8062A1 is a multilayer high-pass filter manufactured by TDK Corporation, designed for wireless LAN applications in the 5-7 GHz range. It operates with a cutoff frequency of 3.95 GHz and features a center frequency of 5.28 GHz. The component exhibits an insertion loss of 1.02 dB and is housed in a compact 0603 (1608 Metric) surface-mount package with three pads.

Feature Summary

• Multilayer construction for high-frequency signal conditioning
• Optimized for wireless local area network bands
• Compact surface-mount form factor

Applications

• Wireless LAN systems
• RF signal filtering
• General electronic equipment

Procurement Notes

Verify the specific datasheet version to confirm electrical parameters such as insertion loss and bandwidth. Ensure the 0603 footprint matches the PCB layout requirements. Confirm that the component meets the intended environmental standards for the target application, as it is specified for general electronic equipment.

Selection Notes

Select this component when a high-pass filter is required for 5-7 GHz WLAN frequencies. The 0603 package suits space-constrained designs. Verify compatibility with the system's impedance and power levels. Consider the 1.02 dB insertion loss impact on overall link budget during circuit design.

Part Context

This part belongs to TDK's series of multilayer RF filters. These components are engineered to provide precise frequency selection in radio frequency circuits. The DEA series typically utilizes ceramic dielectric materials to achieve stable performance across the microwave spectrum.

Replacement Considerations

Consult official TDK documentation for direct substitutes. Cross-reference specifications including cutoff frequency, package dimensions, and insertion loss before substituting.
