Product Detailed Parameters
- Description：RF FILTER BAND PASS 5GHZ 0603
- Series：DEA
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency：5GHz
- Bandwidth：-
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：0.85dB
- Mounting Type：Surface Mount
- Package / Case：0603 (1608 Metric), 3 PC Pad
- Size / Dimension：0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height (Max)：-
Download product information
Overview

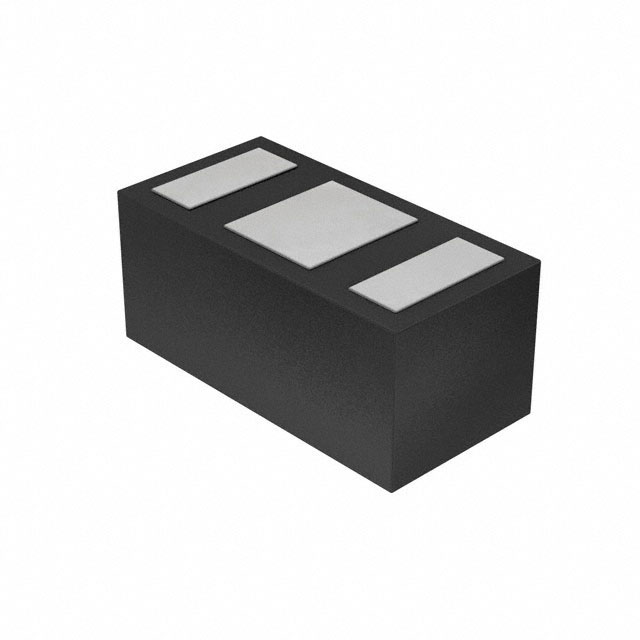

The DEA165538BT-2263A1-H is a multilayer band pass RF filter manufactured by TDK Corporation. Designed for 5GHz wireless LAN applications, it operates with a center frequency of 5GHz and a bandwidth of 0.85dB. The component utilizes a surface mount package in the 0603 (1608 Metric) dimension, featuring a three-pad configuration. It functions as an EMI/RFI filter for signal conditioning and suppression.
Feature Summary
- Multilayer construction for compact integration
- Band pass filtering capability for specific frequency ranges
- Surface mount design for automated assembly
Applications
- 5GHz Wireless LAN systems
- EMI/RFI suppression circuits
- Signal conditioning modules
Procurement Notes
Verify the exact part number against official TDK documentation to ensure compatibility with 5GHz WLAN designs. Confirm that the 0603 footprint matches the target PCB layout. Check for RoHS compliance status if required by regional regulations. Ensure sourcing channels provide genuine components to avoid counterfeit risks associated with RF filters.
Selection Notes
Select this component when a compact band pass filter is required for 5GHz frequencies. The 0603 size suits space-constrained designs. Verify insertion loss specifications meet system requirements. Consider the multilayer technology for stability. Ensure the application environment supports the operating conditions defined in the datasheet.
Part Context
This component belongs to TDK's DEA series of RF filters. These devices are engineered for high-frequency signal integrity in modern communication equipment. The series offers various center frequencies tailored to specific wireless standards. This model specifically targets the 5GHz ISM band used in Wi-Fi technologies.
Replacement Considerations
Consult TDK technical support or authorized distributors for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' 0603 filters without electrical parameter validation. Official replacements must match the center frequency and bandwidth specifications.
