Product Detailed Parameters
- Description：RF FILTER LOW PASS 5.425GHZ 0603
- Series：DEA
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency：5.425GHz Center
- Bandwidth：1.05GHz
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：0.7dB
- Mounting Type：Surface Mount
- Package / Case：0603 (1608 Metric), 4 PC Pad
- Size / Dimension：0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height (Max)：0.026" (0.65mm)
Download product information
Overview

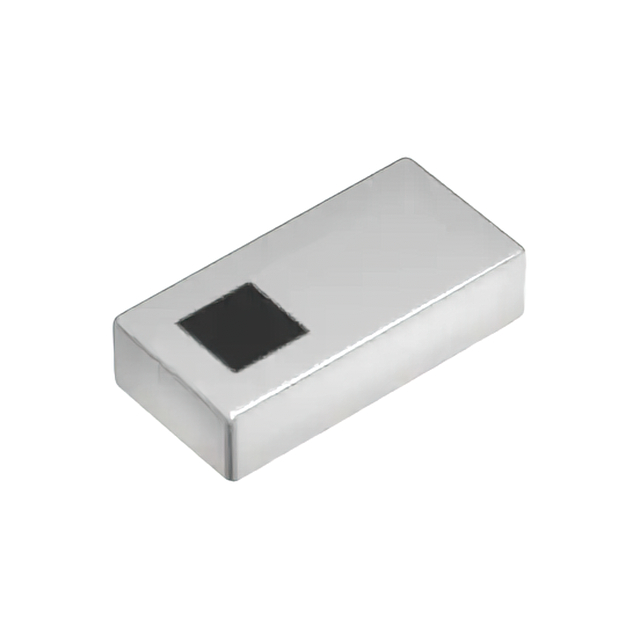

The DEA165950LT-5134A1 is a multilayer low-pass RF filter manufactured by TDK Corporation. It operates with a center frequency of 5425 MHz and a bandwidth of 1.05 GHz. The device features an insertion loss of 0.7 dB and is housed in a surface-mount 0603 (1608 metric) package measuring 1.6 mm x 0.8 mm x 0.65 mm max. It functions within an operating temperature range of -40°C to +85°C.
Feature Summary
- Multilayer ceramic construction for compact surface-mount integration
- Designed as a low-pass filter for radio frequency signal conditioning
- Optimized for high-frequency applications with specified insertion loss characteristics
Applications
- Wireless communication systems requiring RF filtering
- Mobile device front-end modules
- Industrial, Scientific, and Medical (ISM) band equipment
Procurement Notes
Verify the specific ordering suffix and tape/reel packaging details against the official TDK datasheet before procurement. Confirm that the component meets all required environmental certifications and RoHS compliance standards for your specific manufacturing process. Ensure compatibility with standard SMT assembly temperatures.
Selection Notes
Select this component when a low-pass filter is required for the 5.425 GHz center frequency range. The 0603 package size suits space-constrained designs. Verify that the 0.7 dB insertion loss and 1.05 GHz bandwidth align with system performance requirements. Ensure the -40°C to +85°C operating range covers the intended application environment.
Part Context
This part belongs to the TDK DEA series of multilayer low-pass filters. These components are engineered for high-frequency RF applications, providing signal integrity in wireless infrastructure and consumer electronics. The series utilizes advanced ceramic materials to achieve stable performance across varying temperature conditions.
FAQ
What is the maximum operating temperature for the DEA165950LT-5134A1?
The maximum operating temperature is +85°C.
What package type does this filter use?
It uses a surface-mount 0603 (1608 metric) package.
