DEA167240BT-2380B1

Overview

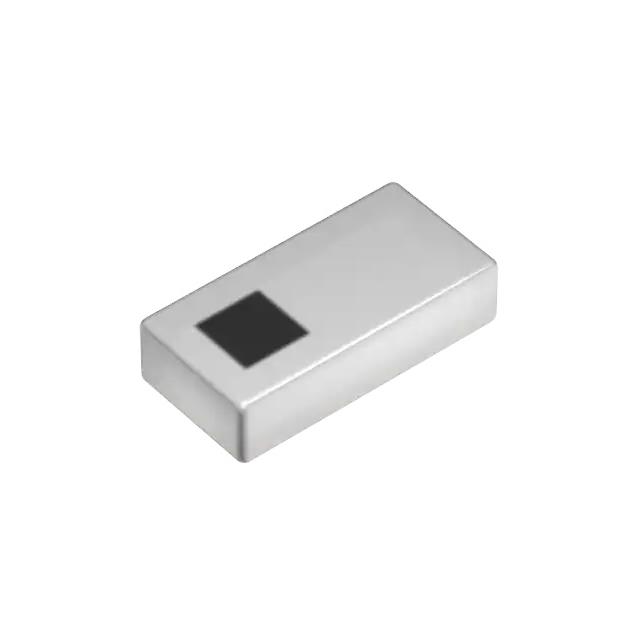

The DEA167240BT-2380B1 is a multilayer band pass RF filter manufactured by TDK Corporation. It operates with a center frequency of 7.24GHz and provides a bandwidth of 2GHz. The component exhibits an insertion attenuation of 2.35dB and is designed for a system impedance of 50Ω. It utilizes a 0603 (1608 Metric) surface-mount package with four pads, suitable for compact radio frequency signal conditioning applications.

Feature Summary

• Multilayer construction for reliable RF signal filtering
• Band pass design optimized for specific frequency ranges
• Surface mount form factor for automated assembly

Applications

• Wireless communication modules
• RF front-end signal conditioning
• IoT device connectivity circuits

Procurement Notes

Verify the complete part number including suffixes to ensure correct specifications. Confirm package dimensions and termination compatibility with PCB layout requirements. Check for RoHS compliance status if required by project standards. Ensure storage conditions meet manufacturer guidelines to maintain component integrity prior to use.

Selection Notes

Select this component when a 7.24GHz center frequency with 2GHz bandwidth is required. The 50Ω impedance matches standard RF systems. The 0603 package size supports space-constrained designs. Verify insertion loss specifications against system sensitivity requirements before integration into the circuit design.

Part Context

This component belongs to TDK's range of passive RF filters designed for wireless connectivity solutions. It supports technologies such as Wi-Fi and Bluetooth in mobile devices and IoT hardware. The product line addresses the demand for compact, high-performance signal filtering in modern electronic devices requiring reliable wireless transmission.

Replacement Considerations

Consult official TDK documentation for verified substitute part numbers. Cross-reference center frequency, bandwidth, and impedance parameters strictly. Do not assume interchangeability based on package similarity alone without confirming electrical performance equivalence.
