Product Detailed Parameters
- Description：RF FILTER LOW PASS 829MHZ 0805
- Series：DEA
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency：829MHz Center
- Bandwidth：262MHz
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：0.65dB
- Mounting Type：Surface Mount
- Package / Case：0805 (2012 Metric), 3 PC Pad
- Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height (Max)：0.031" (0.80mm)
Download product information
Overview

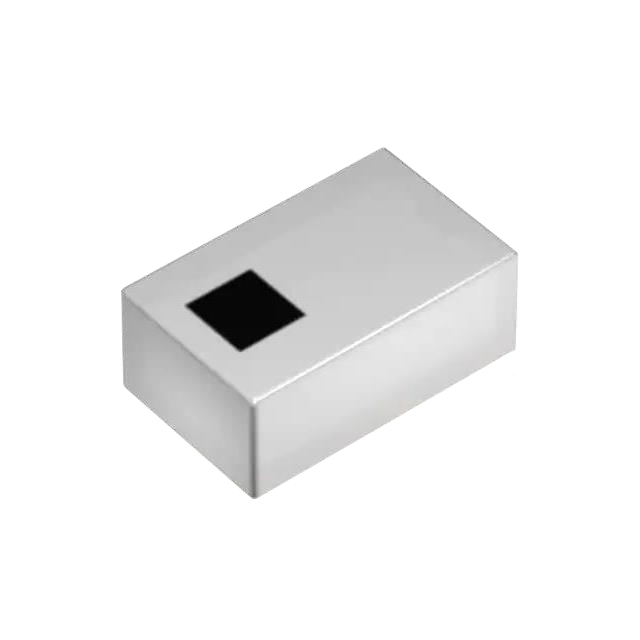

The DEA200960LT-5055B1 is a low-pass RF filter manufactured by TDK Corporation, utilizing Low Temperature Co-fired Ceramic (LTCC) technology. Designed for surface mount applications in the 0805 (2012 Metric) package, this component operates with a center frequency of 829MHz and a bandwidth of 262MHz. It covers the frequency range from 698MHz to 960MHz. The device exhibits an insertion loss of 0.65dB, ensuring efficient signal transmission within its designated passband while attenuating higher frequencies.
Feature Summary
- Constructs resonance using LTCC technology to selectively pass specific frequency ranges.
Applications
- GSM networks
- LTE systems
- UMTS standards
- 5G infrastructure
Procurement Notes
Verify the specific datasheet version when sourcing, as manufacturing details may evolve. Confirm that the 0805 footprint matches your PCB design constraints. Ensure compatibility with standard reflow soldering profiles for LTCC components. Cross-reference the manufacturer's official documentation for any updates regarding environmental compliance or RoHS status before finalizing procurement decisions.
Selection Notes
Select this component when a compact surface-mount solution is required for filtering signals between 698MHz and 960MHz. The 0.65dB insertion loss makes it suitable for applications demanding minimal signal degradation. Consider the 0805 package size for space-constrained designs. Verify that the LTCC construction aligns with your thermal and mechanical requirements for wireless communication modules.
Part Context
This part belongs to TDK's DEA series of RF filters. These components are engineered for high-performance wireless connectivity solutions. The series leverages advanced ceramic materials to achieve precise frequency characteristics in small form factors, supporting the growing demand for reliable signal integrity in modern mobile and IoT devices.
Replacement Considerations
Consult official substitution guides for compatible alternatives. Ensure any replacement maintains the 0805 footprint and similar electrical specifications for the 698-960MHz range. Verify that substitute parts meet the same LTCC construction standards and insertion loss requirements.
FAQ
What technology is used to construct the DEA200960LT-5055B1?
It is constructed using Low Temperature Co-fired Ceramic (LTCC) technology.
What is the specified insertion loss for this filter?
The insertion loss is specified as 0.65dB.
