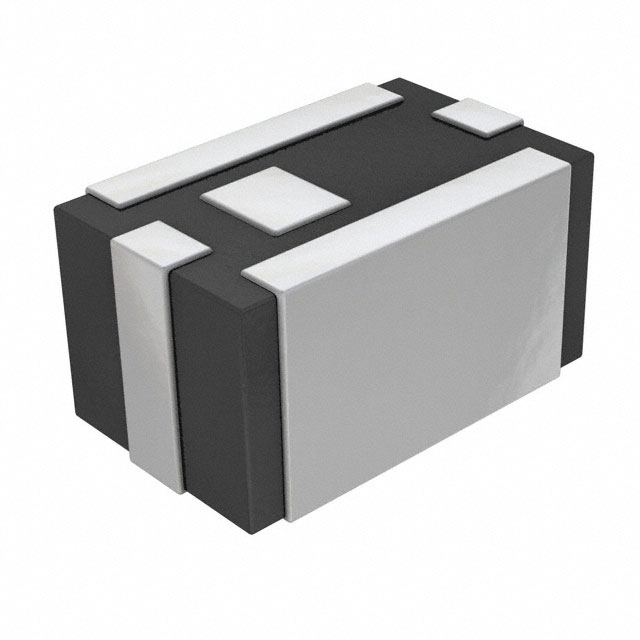

DEA202450BT-2038A1

$0.72

Description：RF FILTER BAND PASS 2.45GHZ 0805
Series：DEA
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:0d974040cb81 Category: RF Filters Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER BAND PASS 2.45GHZ 0805
Series：DEA
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Frequency：2.45GHz Center
Bandwidth：100MHz
Filter Type：Band Pass
Ripple：-
Insertion Loss：2.6dB
Mounting Type：Surface Mount
Package / Case：0805 (2012 Metric), 4 PC Pad
Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max)：0.041" (1.05mm)

Download product information

DEA202450BT-2038A1

Overview

The DEA202450BT-2038A1 is a multilayer bandpass RF filter manufactured by TDK Corporation. It operates at a center frequency of 2.45 GHz with a bandwidth of 100 MHz and a maximum insertion loss of 2.6 dB. The component utilizes a surface-mount 0805 (2012 Metric) package, measuring 2.0 mm in length, 1.25 mm in width, and 0.95 mm in height. It supports an operating temperature range from -40 °C to +85 °C and complies with RoHS3 standards.

Feature Summary

Multilayer ceramic construction for stable RF signal conditioning
Designed for compact surface-mount integration
Optimized for 2.45 GHz wireless communication bands

Applications

WLAN modules
Bluetooth devices
ISM band applications

Procurement Notes

Verify the specific suffix 'A1' against the manufacturer's current datasheet to confirm pinout and electrical tolerances. Note that this part number is listed as End-of-Life (EOL) by TDK; ensure availability through authorized distributors or approved substitute components before finalizing procurement plans.

Selection Notes

Select this component when a 0805 footprint is required for 2.45 GHz filtering. Compare insertion loss specifications against system link budget requirements. Ensure the 100 MHz bandwidth aligns with the necessary channel separation for the target wireless protocol.

Part Context

This device belongs to the TDK DEA series of RF filters. These components are engineered for high-frequency signal integrity in portable electronics. The DEA series provides reliable performance in compact form factors suitable for modern wireless connectivity standards.

Replacement Considerations

TDK recommends DEA202450BT-2175A1-H as a manufacturer-recommended alternative. Verify compatibility regarding package dimensions and electrical parameters before substitution.
