DEA203750BT-2292A1-H

Overview

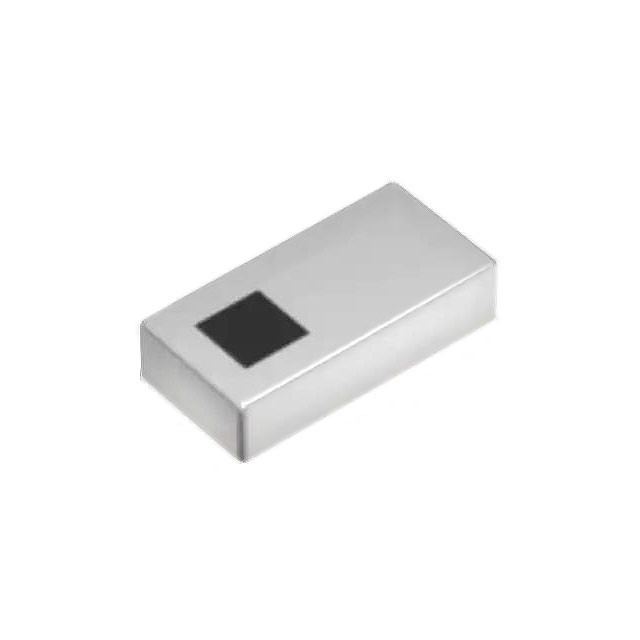

The TDK DEA203750BT-2292A1-H is a surface-mount bandpass filter designed for RF signal conditioning. It operates at a center frequency of 3.75 GHz with a bandwidth of 900 MHz, covering the 3300–4200 MHz range. The component features a 50 Ohm impedance and an insertion loss of 2.3 dB. Housed in a compact 0805 (2.0 mm x 1.25 mm) package, it supports operation between -40°C and +85°C. Key attenuation specifications include minimum rejection of 43 dB at 100–915 MHz, 1427–1467 MHz, and 45 dB at 1627–1661 MHz.

Feature Summary

• Provides effective EMI/RFI suppression through high attenuation in specific lower frequency bands
• Optimized for 5G Low Band N77 applications with precise center frequency tuning
• Utilizes multilayer ceramic technology for reliable surface-mount integration

Applications

• 5G Low Band N77 mobile communication devices
• RF front-end modules requiring bandpass filtering
• EMI/RFI suppression in wireless infrastructure

Procurement Notes

Verify the exact suffix against official TDK documentation to ensure correct frequency and tolerance specifications. Confirm RoHS compliance status via the manufacturer's current datasheet. Ensure compatibility with standard 0805 reflow soldering profiles during assembly planning.

Selection Notes

Select this component when a 3.75 GHz center frequency with 900 MHz bandwidth is required. Consider the 2.3 dB insertion loss and physical dimensions for PCB layout constraints. Verify that the operating temperature range meets the environmental requirements of the target application.

Part Context

This part belongs to the TDK DEA series of multilayer bandpass filters. These components are engineered for high-frequency signal integrity in modern wireless systems. The series offers various center frequencies tailored for specific cellular and Wi-Fi standards.

Replacement Considerations

Consult TDK's official substitution guide for verified equivalents. Cross-referencing with other manufacturers requires matching center frequency, bandwidth, and package dimensions.
