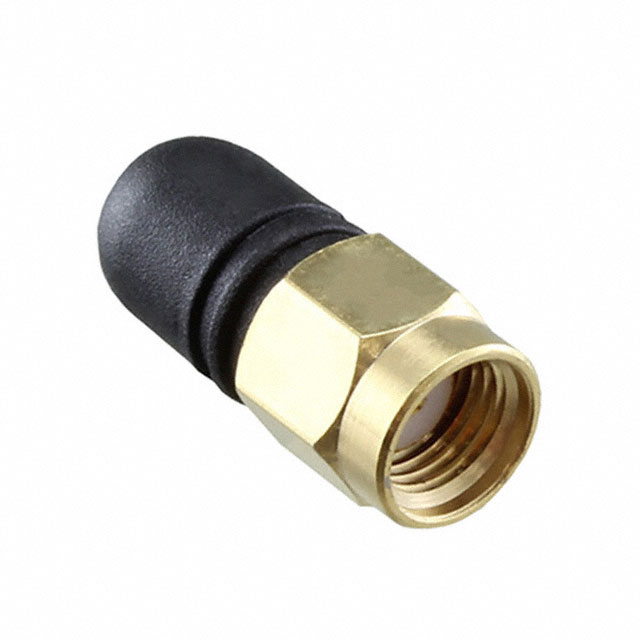

DELTA19/X/SMAM/RP/S/35

$11.74

Description：RF ANT 2.4GHZ WHIP STR MALE 18MM
Series：-
Mfr：Siretta Ltd
Package：Bulk

SKU:cf70c54a01a0 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 2.4GHZ WHIP STR MALE 18MM
Series：-
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：0dBi
Features：-
Termination：RP-SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：0.748" (19.00mm)
Applications：Bluetooth, Wi-Fi, Zigbee™
Power - Max：1 W

Download product information

DELTA19/X/SMAM/RP/S/35

Overview

The Siretta DELTA19/X/SMAM/RP/S/35 is a high-gain, vertical stubby RF antenna designed for operation within the 2.4 GHz to 2.5 GHz frequency range. It features an 8.5 dBi gain rating and utilizes a Reverse Polarity SMA male connector for interface compatibility. The component is RoHS compliant and includes a two-year warranty from the manufacturer.

Feature Summary

High gain performance of 8.5 dBi
Compact vertical stubby physical design
Reverse polarity SMA male connector interface

Applications

Wi-Fi systems
Bluetooth applications

Procurement Notes

Verify that the specific application requires a reverse polarity connector configuration, as standard SMA connectors are incompatible with this RP variant. Confirm that the operating environment supports the specified 2.4-2.5 GHz frequency band and that the 8.5 dBi gain aligns with system link budget requirements.

Selection Notes

Select this model when high gain is required in a compact form factor for 2.4 GHz wireless protocols. Ensure the mating equipment accepts reverse polarity SMA male connectors. This antenna is suitable for applications where space constraints preclude larger whip antennas but signal strength remains critical.

Part Context

This component belongs to the DELTA series of RF antennas manufactured by Siretta Ltd. The series focuses on specialized wireless connectivity solutions, with this specific part addressing the need for high-performance, low-profile antennas for modern short-range communication standards.
