DELTA41/X/SMAM/S/S/32

$25.93

Description：RF ANT 824MHZ/2.2GHZ WHIP TILT
Series：DELTA 41
Mfr：Siretta Ltd
Package：Bulk

SKU:70ef9e480393 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 824MHZ/2.2GHZ WHIP TILT
Series：DELTA 41
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：-
Frequency Group：Wide Band
Frequency (Center/Band)：824MHz, 2.2GHz, 2.6GHz
Frequency Range：689MHz ~ 960MHz, 1.71GHz ~ 2.71GHz, 2.5GHz ~ 2.7GHz
Antenna Type：Whip, Tilt
Number of Bands：3
VSWR：-
Return Loss：-
Gain：3dBi
Features：-
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：9.331" (237.00mm)
Applications：-
Power - Max：-

Download product information

DELTA41/X/SMAM/S/S/32

Overview

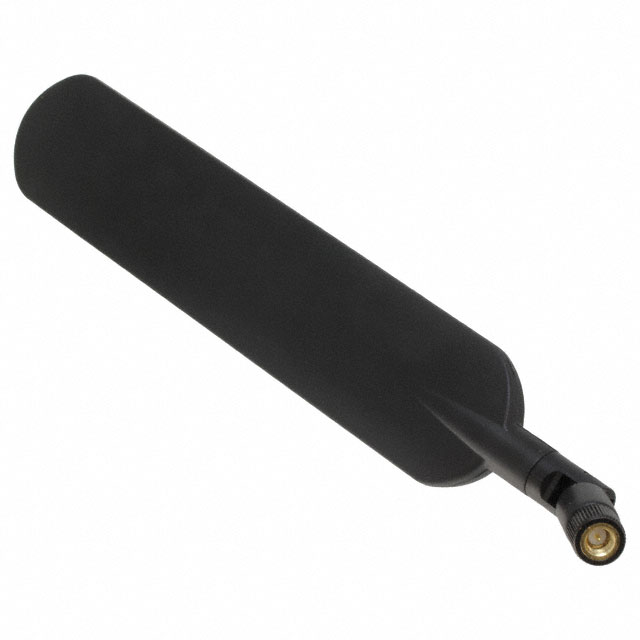

The DELTA41/X/SMAM/S/S/32 is a multi-band external antenna from the Delta 41 series, designed for 2G, 3G, 4G, and WiFi applications. It features a flat hinged design with a swivel knuckle for direct connection. The unit includes a 237mm long whip element terminated with an SMA male connector. It supports frequency bands covering cellular and wireless LAN standards.

Feature Summary

Flat hinged physical structure with integrated swivel knuckle
Direct connect configuration for flexible positioning
Multi-band capability supporting 2G, 3G, 4G, and WiFi protocols

Applications

2G cellular network connectivity
3G cellular network connectivity
4G LTE network connectivity
WiFi wireless local area networking

Procurement Notes

Verify the specific SMA male connector interface compatibility with the host device port before integration. Confirm that the 237mm whip length and flat hinged form factor meet the spatial requirements of the installation environment. Ensure the target application aligns with the supported 2G, 3G, 4G, and WiFi frequency ranges defined by the manufacturer specifications.

Selection Notes

Select this model when a robust, externally mounted solution is required for mixed cellular and WiFi deployments. The swivel knuckle allows precise orientation adjustment to optimize signal reception in varying environments. Consider the physical dimensions and direct-connect nature if space constraints or mounting flexibility are critical factors in the system design.

Part Context

This component belongs to the Delta 41 series manufactured by Siretta Ltd. The series specializes in high-gain antennas featuring flat designs with hinge mechanisms. These units are engineered for reliable performance in demanding wireless communication scenarios requiring adjustable directional alignment.
